Flat Hardened Pusher for Shot Plates & Impression Dies


Flat Magnetic Pusher for Dies & Shot PlatesClick the image to enlarge
PUSH-FLAT

Flat Hardened Pusher for Shot Plates & Impression Dies


This flat faced pusher attaches to the universal magnetic holder (not included) which in turn attaches to your press. It acts as a force when using an impression die or shot plate.

The large face is ideally suited to bigger impression dies and can be used to press either solid metal on it's own or sheet metal in conjunction with urethane.

Please allow an extra 3-5 days for this option due to the hardening process.

Product description

  • Specification

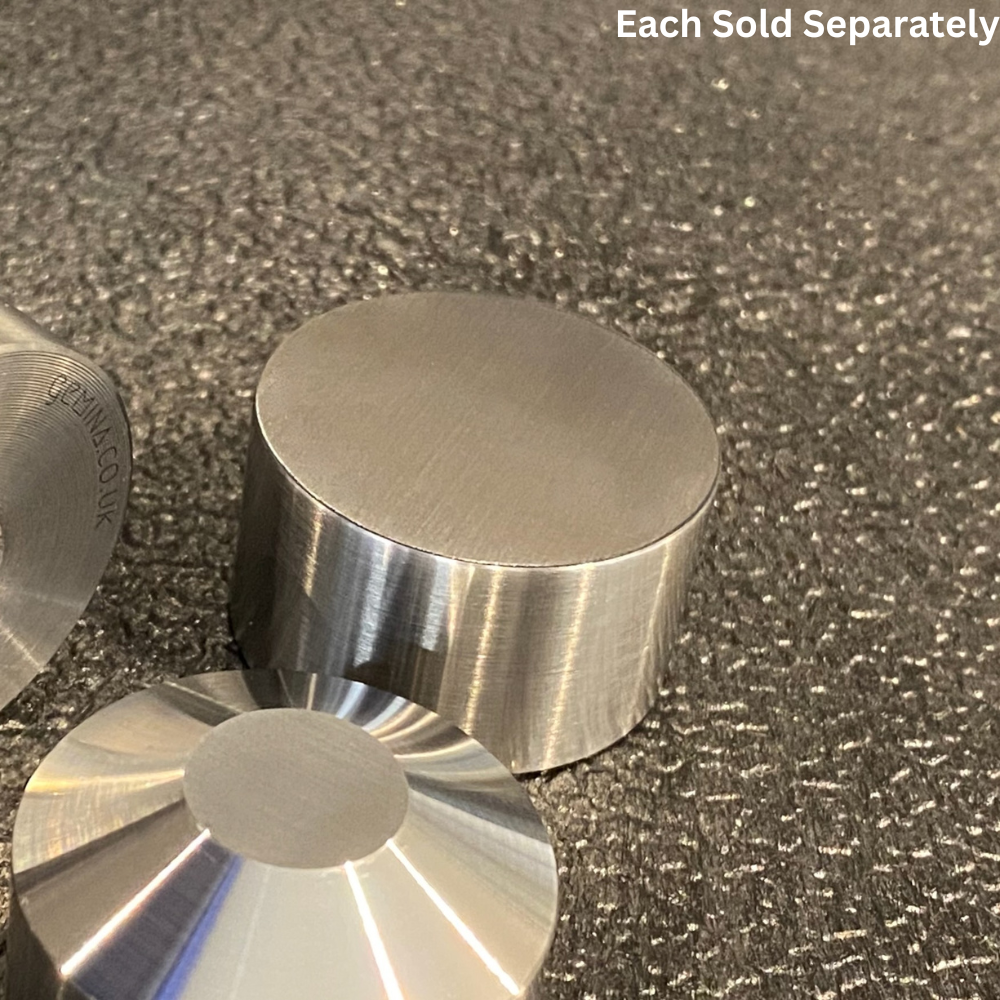

    The flat faced pusher is made from hardened tool steel and measures approximately:
    Diameter: 36mm
    Length: 20mm
    Made in England, UK.

  • Instructions

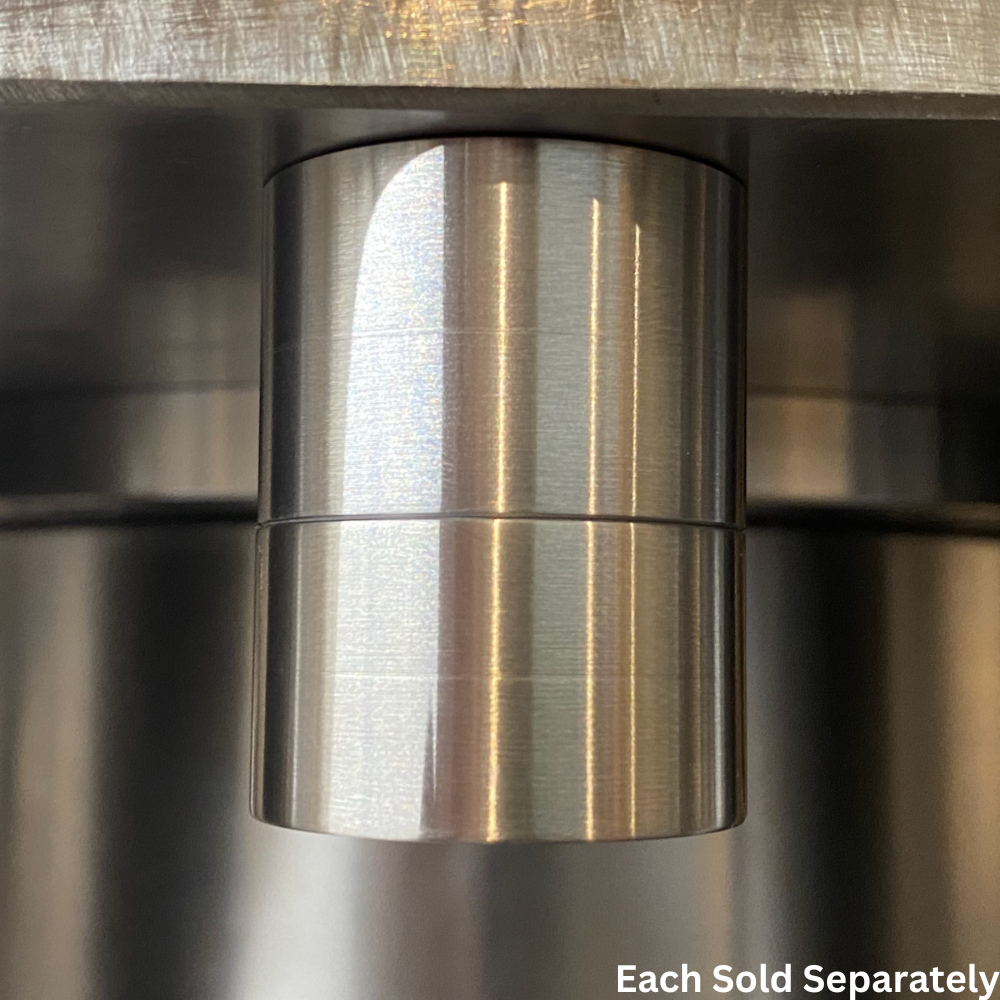

    The flat faced pusher attaches to the universal magnetic base (not included).

    Some hydraulic presses have a steel rod extending from the underneath of the jack - the universal base and pusher attaches to this rod. Other hydraulic presses have the ram extending from bottom to top. If your press is like that, attach the universal base and pusher to the underside of the press frame.

    The pusher face should be pointing down towards the die or shot plate. You can use the pusher in any type of press - hydraulic, kick press, fly press etc.

    Important! - Always ensure the pusher is placed centrally on the ram or frame before pressing.

  • Additional Information

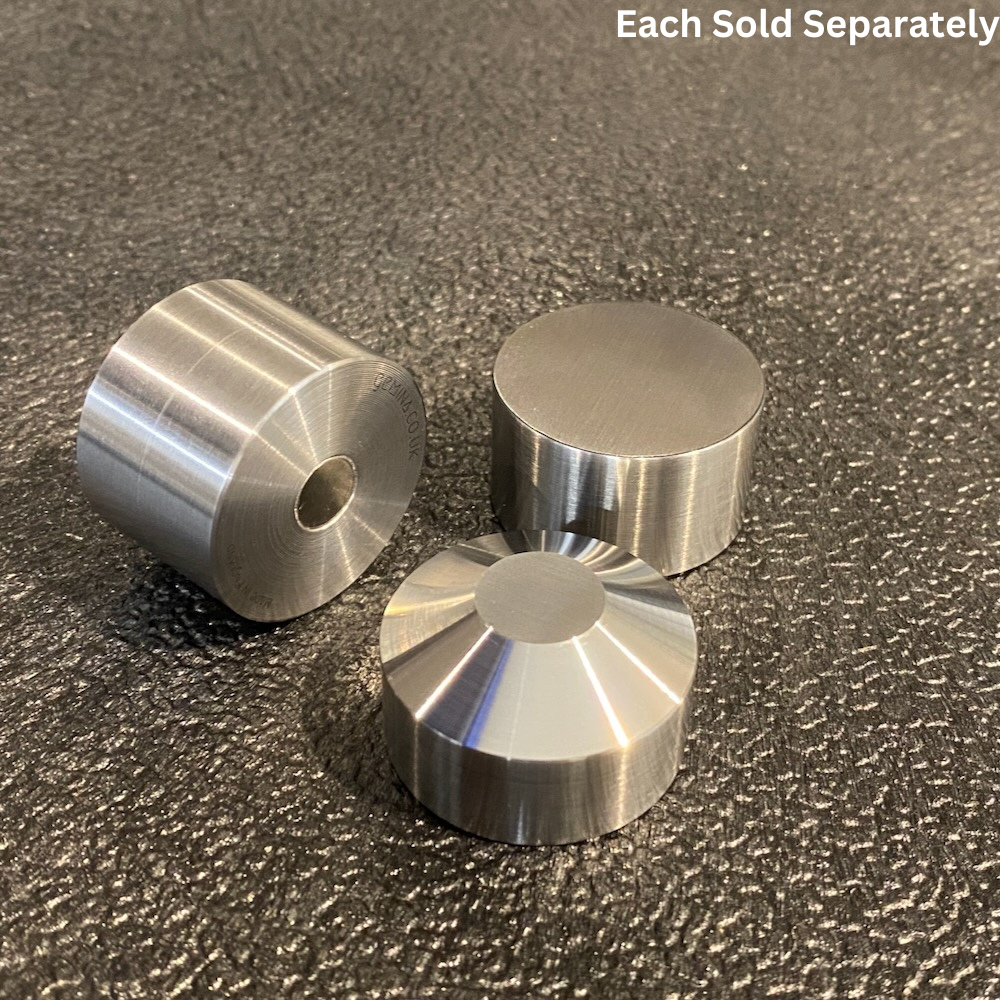

    This is the full diameter pusher. You may also need the universal magnetic base (not included). Also available is a tapered pusher with a smaller face ideal for small dies and shot plates.

    Universal Magnetic Base
    Tapered Pusher
  • Processing Times & Shipping

    PROCESSING TIMES

    All purchases are made to order and will take 4-5 working days to dispatch. You will receive a dispatch notification via email with your tracking number. All hardened items will take an extra 3-5 working days for the heat treatment process. These times may increase during promotions, sales and holiday periods.

    UK DELIVERY

    UK delivery is free on orders over £35. A delivery charge of £6 applies to orders under £35.

    INTERNATIONAL DELIVERY

    Free International Shipping on orders over £125GBP. Orders under £125GBP have flat rate shipping charge of £10-25 (depending on country) for all items in basket. We use UPS/DPD for all international deliveries. The buyer is solely responsible for understanding and complying with the import requirements of the destination country and any duty, VAT, taxes, or clearance charges that may be applicable outside of the UK.

    If you need to have your parcel delivered to a PO Box. Please contact us first.

    For more delivery information, please see our delivery policy.

    GPRS

    Gemina Ltd, 15 Somerset Road, East Preston, West Sussex BN161BZ, UK. www.gemina.co.uk
    A magnetic base and pusher attaches to the underside of the top platen of a hydraulic press and forces the metal into the die. Always make sure the magnetic base and the pusher is centred on the press both back to front and side to side. Do not use the magnetic base to press items, always use a pusher. Line up the part of the die you are pressing centrally to the pusher. Wear appropriate PPE. Regularly inspect steel tools and implements for wear and sharp edges. Keep steel tools dry well oiled to prevent corrosion. Steel can be brittle and can shatter under extreme stress.
    Our EU Responsible Person for product safety compliance is EU Compliance Partner, located at Pärnu mnt. 139b – 14, 11317 Tallinn, Estonia. For any inquiries, please visit www.eucompliancepartner.com.
