108 - Small Curled Feather Shot Plate


108 - Gemina Small Curled Feather Shot PlateClick the image to enlarge
108

108 - Small Curled Feather Shot Plate

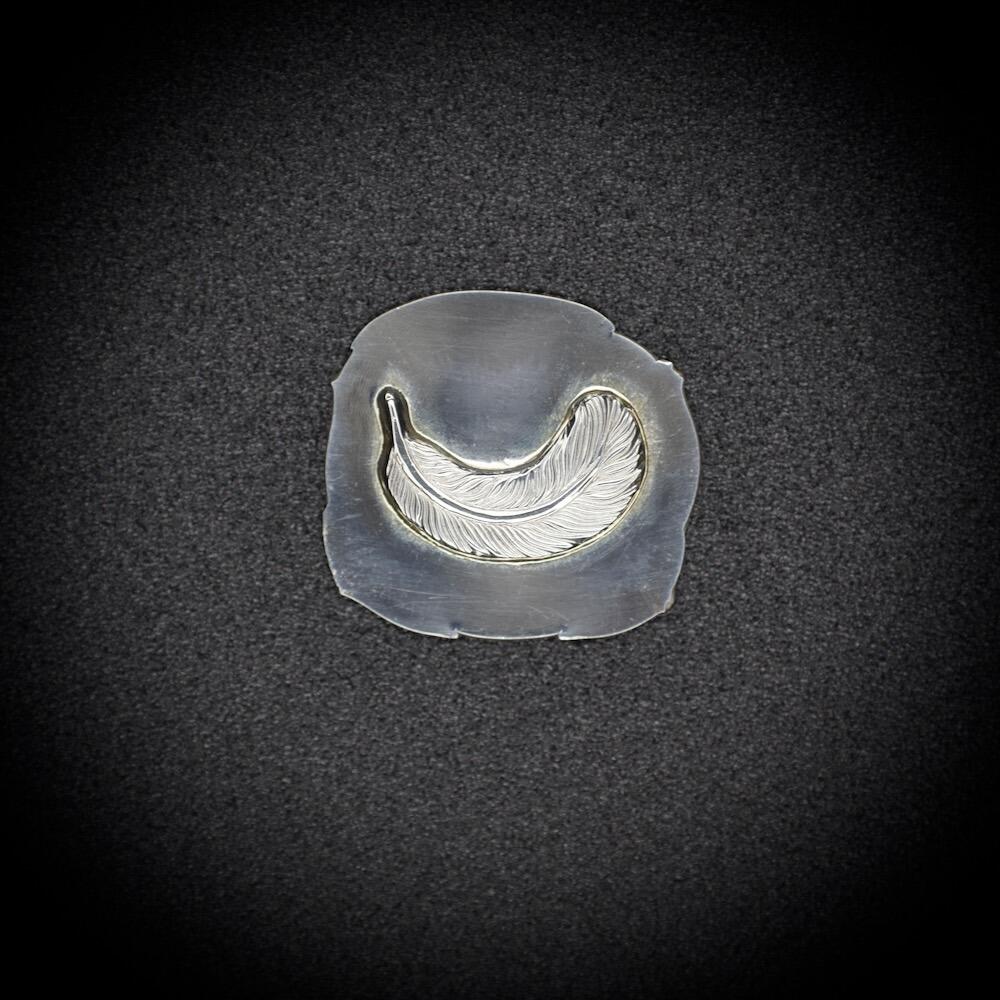

This steel jewellery shot plate produces a small curled hand engraved feather design in silver, gold, copper and pewter. You can use it in a press or with a hammer and punch. This small feather design is perfect for creating unique pendants, earrings, charms, rings and brooches.

There are 3 other impression dies in this Feathers set - all created from hand engraved designs and made in-house at Gemina.

Left FeatherLong FeatherRight Feather

Product description

  • Specification

    The small curled feather design measures approximately:
    Width: 9.8mm
    Height: 6mm
    Depth: 0.8mm

    This impression die is manufactured from mild steel and measures approximately 20mm thick and 40mm in diameter. Made in England, UK.

  • Instructions

    Can I use this tool with a hammer and a punch?

    Yes - When using a hammer and punch, it's crucial to work over a solid and rigid surface such as a stump, anvil or a concrete floor. Without a solid surface, no amount of hammering will produce good results! The size of your hammer plays a big part too - a 4lb lump hammer is ideal. Always use a punch when hammering your metal. Be careful to avoid striking the hammer directly on the die or shot plate.

    Can I use this tool with a hydraulic press?

    Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed regularly before you begin. Intermediate annealing may be required to achieve a full impression.

    How much silver do I use with this design?

    You can use approximately 1g of silver to achieve a solid impression.

    What shape of silver can I use?

    Flattened wire:

    For long or narrow shapes, you can use thick wire cut to length and flattened enough to cover most of the design. Remember to anneal your metal regularly.

    Small flat ingot:

    Forge your metal into a shape that covers most of the design. Press (or hammer) the metal into the die until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression.

    Flat sheet:

    Cut sheet to size so that it covers the design. Press (or hammer) until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression. Remember to use sheet that is thicker than the impression depth of the die. Alternatively, you can use thinner sheet with urethane (or a soft metal pusher) to create a hollow impression.

    Removing your impression from the die

    Occasionally, some dies can 'hold on' to your metal. This is more common when using a press compared to hammering. Ensure the dies are clean before use. If you wish, you can apply a very small amount of oil into the die before forming as this can help removal. Excess metal will create a flange around the design that will aid in removal after hammering or pressing. Carefully use a thin bladed knife under the excess metal to lift the impression out of the die.

    Some additional information can be found here shot plate and impression die tips.

  • Additional Information

    Take a look at our other shapes and symbols shot plates and impression dies.

    If you have a solid and rigid work surface, you could use our Punch (Force) tool with a 2-4lb lump hammer.If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools.
    If you need a spacer for your press, you can buy one here.
    Gemina Punch (Force) ToolGemina Press PushersGemina Press Pushers
  • Processing Times & Shipping

    PROCESSING TIMES

    All purchases are made to order and will take 4-5 working days to dispatch. You will receive a dispatch notification via email with your tracking number. All hardened items will take an extra 3-5 working days for the heat treatment process. These times may increase during promotions, sales and holiday periods.

    UK DELIVERY

    UK delivery is free on orders over £30. A delivery charge of £6 applies to orders under £30.

    INTERNATIONAL DELIVERY

    Free International Shipping on orders over £125GBP. Orders under £125GBP have flat rate shipping charge of £10-25 (depending on country) for all items in basket. We use UPS/DPD for all international deliveries. The buyer is solely responsible for understanding and complying with the import requirements of the destination country and any duty, VAT, taxes, or clearance charges that may be applicable outside of the UK.

    If you need to have your parcel delivered to a PO Box. Please contact us first.

    For more delivery information, please see our delivery policy.
