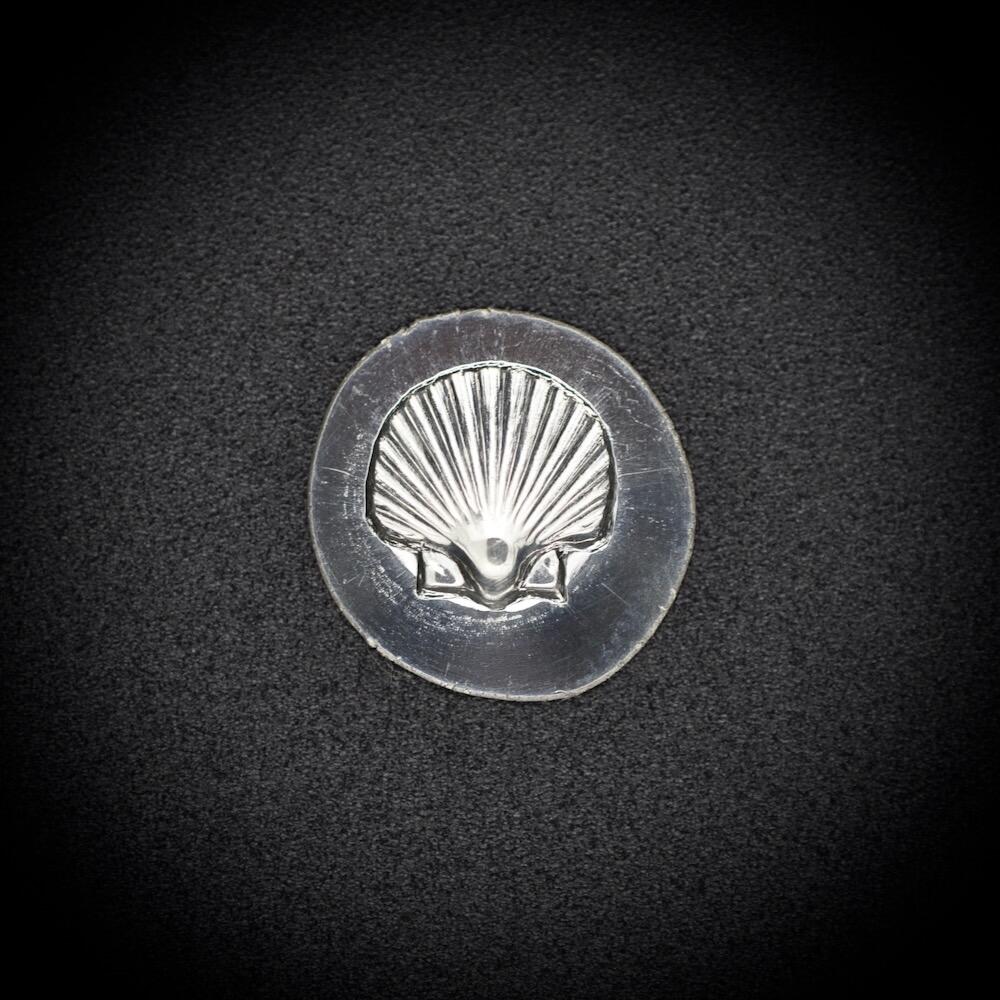

126 - Scallop Shell Shot Plate
Popular and versatile, this scallop shell is an essential design to have at your bench. This design can be created using either a hammer and punch or hydraulic press. Shells offer a wide range of jewellery making options including earrings, ring embellishments, small pendants, charms and a variety of jewellery accents.
There are 3 other shot plates in this shell set - all created from hand engraved designs and made in house at Gemina.
Product description
- Specification
The hand engraved scallop shell design measures approximately:
Width: 8.4mm
Height: 8.4mm
Depth: 1.4mmThis impression die is manufactured from mild steel and measures approximately 20mm thick and 40mm in diameter. Made in England, UK.
- Instructions
Can I use this tool with a hammer and a punch?
Yes - When using a hammer and punch, it's crucial to work over a solid and rigid surface such as a stump, anvil or a concrete floor. Without a solid surface, no amount of hammering will produce good results! The size of your hammer plays a big part too - a 4lb lump hammer is ideal. Always use a punch when hammering your metal. Be careful to avoid striking the hammer directly on the die or shot plate.
Can I use this tool with a hydraulic press?
Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed regularly before you begin. Intermediate annealing may be required to achieve a full impression.
How much silver do I use with this design?
You can use approximately 1g of silver to achieve a solid impression.
What shape of silver can I use?
Round shot:
Melt your metal into round shot. For best results, clean or pickle your metal before placing into the die. Use a hammer and punch (or press) to force the silver into the die. If hammering, anneal your metal after every 3 or 4 heavy blows.
Removing your impression from the die
Occasionally, some dies can 'hold on' to your metal. This is more common when using a press compared to hammering. Ensure the dies are clean before use. If you wish, you can apply a very small amount of oil into the die before forming as this can help removal. Excess metal will create a flange around the design that will aid in removal after hammering or pressing. Carefully use a thin bladed knife under the excess metal to lift the impression out of the die.
Some additional information can be found here shot plate and impression die tips.
- Additional Information

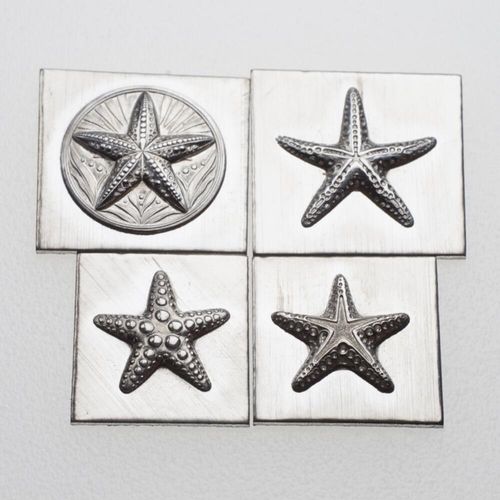

Take a look at our other Beaches and oceans shot plates and impression dies.
If you have a solid and rigid work surface, you could use our Punch (Force) tool with a 2-4lb lump hammer. If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools. If you need a spacer for your press, you can buy one here. - Processing Times & Shipping
