Product description

• Specification

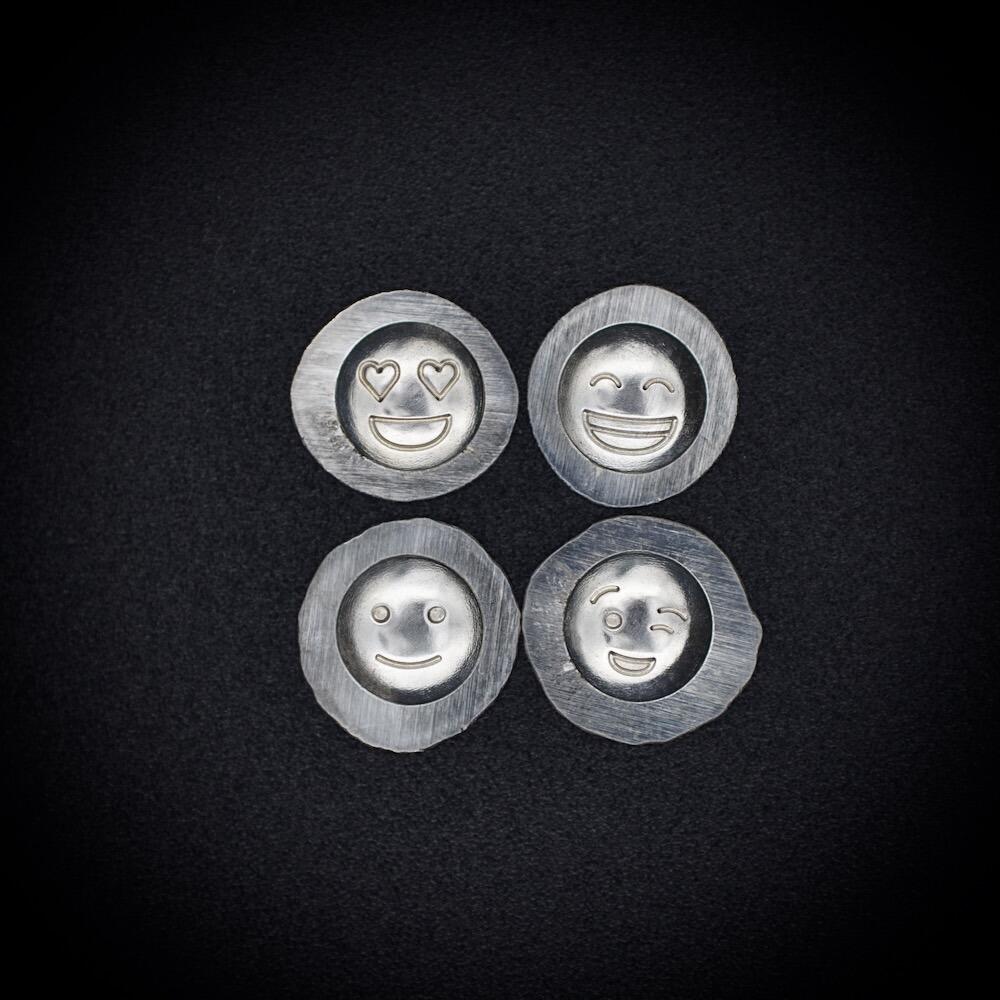

  The mini hardened emoji shot plate designs measure approximately:
  Diameter: 6.0mm
  Depth: 1.0mm

  This shot plate is manufactured from tool steel which is heat treated and tempered to provide extremely strong and wear resistant designs. It measures approximately 20mm thick and 50mm in diameter. Made in England, UK.

• Instructions

  Can I use this tool with a hammer and a punch?

  Yes - When using a hammer and punch, it's crucial to work over a solid and rigid surface such as a stump, anvil or a concrete floor. Without a solid surface, no amount of hammering will produce good results! The size of your hammer plays a big part too - a 4lb lump hammer is ideal. Always use a punch when hammering your metal. Be careful to avoid striking the hammer directly on the die or shot plate.

  Can I use this tool with a hydraulic press?

  Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed regularly before you begin. Small designs such as these require careful, gentle pressing. There is no need to use the same amount of force as a larger design.

  Can I use this tool with the YQK-70 hydraulic crimping tool?

  Yes, this plate can be used in the YQK-70 along with our hardened anvil.

  How much silver do I use with this design?

  You can use approximately 0.4g of silver to achieve a solid impression.

  What shape of silver can I use?

  Round shot:

  Melt your metal into round shot. For best results, clean or pickle your metal before placing into the die. Use a hammer and punch (or press) to force the silver into the die. If hammering, anneal your metal after every 3 or 4 heavy blows.

  Removing your impression from the die

  Occasionally, some dies can 'hold on' to your metal. This is more common when using a press compared to hammering. Ensure the dies are clean before use. If you wish, you can apply a very small amount of oil into the die before forming as this can help removal. Excess metal will create a flange around the design that will aid in removal after hammering or pressing. Carefully use a thin bladed knife under the excess metal to lift the impression out of the die.

  Some additional information can be found here shot plate and impression die tips.

  General instructions on how to use shot plates can be found here.

• Additional Information

  Take a look at our other shapes and symbols shot plates and impression dies.

  If you have a solid and rigid work surface, you could use our Punch (Force) tool with a 2-4lb lump hammer.	If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools.	If you need a spacer for your press, you can buy one here.
