216 - Spiral Star Shot Plate


216 - Spiral Star Shot PlateClick the image to enlarge
216

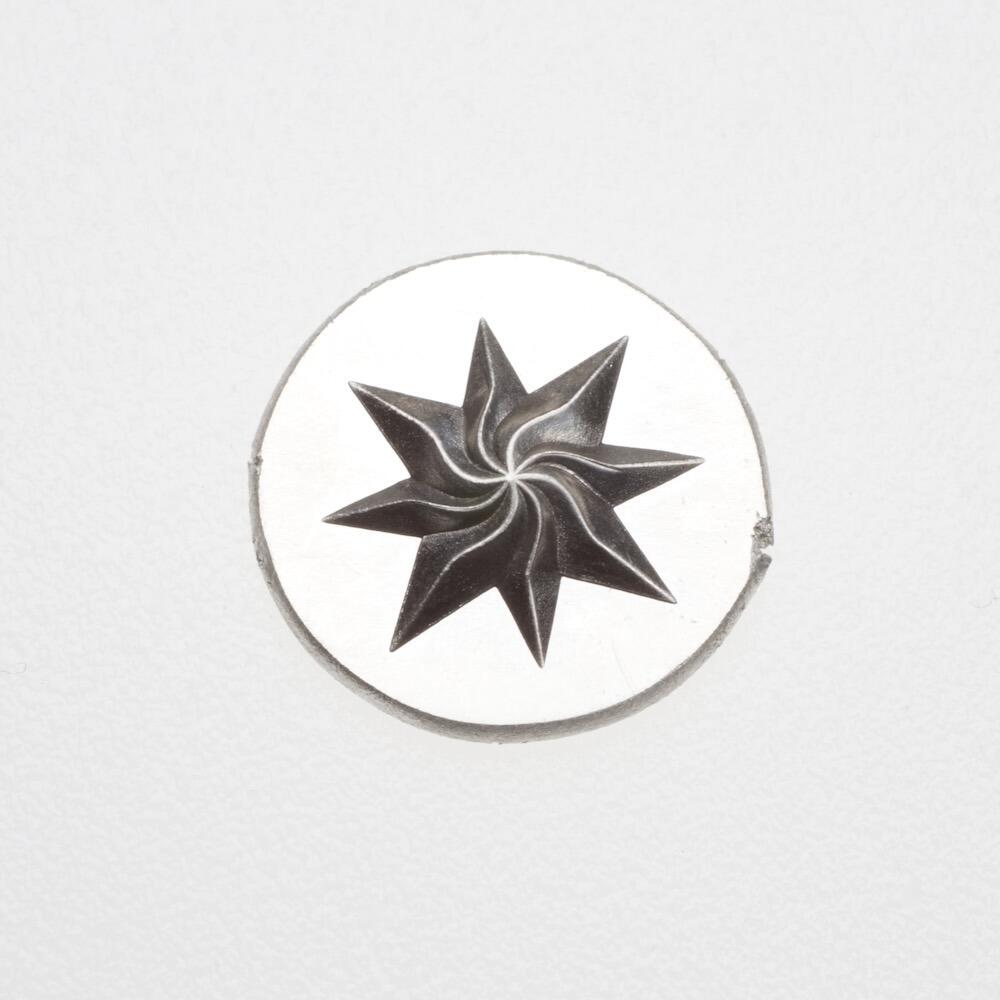

216 - Spiral Star Shot Plate


This single design shot plate produces a spiral star in silver, gold, pewter or copper. At approximately 8.5mm, this design is suited to small pendants, charms and accents. There is a mini version of this star on our mini star shot plate.

See our other star shot plates and impression dies.

mini starsplain starspotty star

Product description

  • Specification

    The spiral star design measures approximately:
    Width: 8.5mm
    Height: 8.5mm
    Depth: 1.2mm

    This impression die is manufactured from mild steel and measures approximately 20mm thick and 40 mm in diameter. Made in England, UK.

  • Instructions

    Can I use this tool with a hammer and a punch?

    Yes - When using a hammer and punch, it's crucial to work over a solid and rigid surface such as a stump, anvil or a concrete floor. Without a solid surface, no amount of hammering will produce good results! The size of your hammer plays a big part too - a 4lb lump hammer is ideal. Always use a punch when hammering your metal. Be careful to avoid striking the hammer directly on the die or shot plate.

    Can I use this tool with a hydraulic press?

    Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed regularly before you begin. Intermediate annealing may be required to achieve a full impression.

    How much silver do I use with this design?

    You can use approximately 1.5g of silver to achieve a solid impression.

    What shape of silver can I use?

    Round shot:

    Melt your metal into round shot. For best results, clean or pickle your metal before placing into the die. Use a hammer and punch (or press) to force the silver into the die. If hammering, anneal your metal after every 3 or 4 heavy blows.

    Flat sheet:

    Cut sheet to size so that it covers the design. Press (or hammer) until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression. Remember to use sheet that is thicker than the impression depth of the die. Alternatively, you can use thinner sheet with urethane (or a soft metal pusher) to create a hollow impression.

    General instructions on how to use shot plates can be found here.

  • Additional Information

    Take a look at our other celestial and cosmic shot plates and impression dies.

    If you have a solid and rigid work surface, you could use our Punch (Force) tool with a 2-4lb lump hammer.If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools.
    If you need a spacer for your press, you can buy one here.
    Gemina Punch (Force) ToolGemina Press PushersGemina Press Pushers
