219 - Heart & Dagger Impression Die


219 - Gemina Dagger Heart Impression DieClick the image to enlarge
219

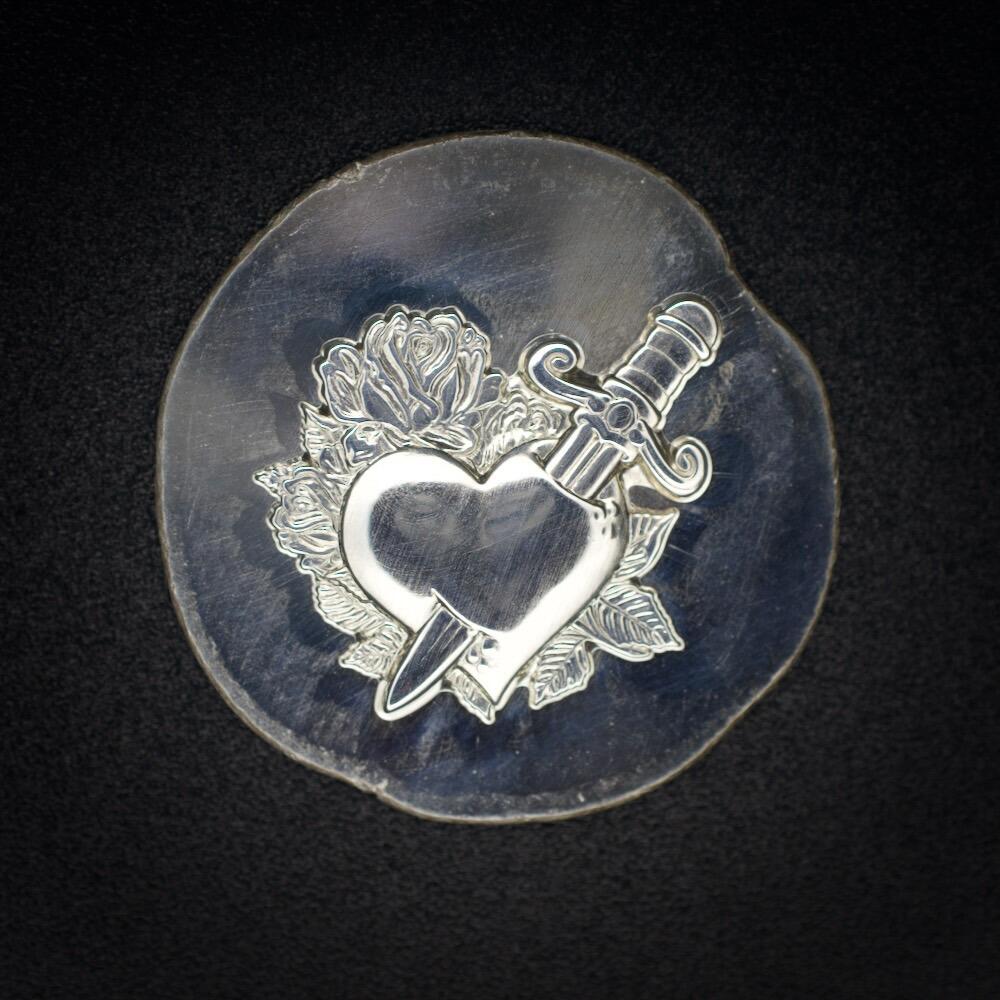

219 - Heart & Dagger Impression Die


Love betrayed! This medium sized impression die produces a heart and dagger design resting upon a background of roses. Design width is 16mm.

You may also like these other heart designs.

Gemina Flower HeartGemina multiborder HeartGemina Scroll Heart

Product description

  • Specification

    The heart and dagger design measures approximately:
    Width: 16mm
    Height: 13mm
    Depth: 1.3mm

    This impression die is manufactured from mild steel and measures approximately 25mm thick and 40mm in diameter. Made in England, UK.

  • Instructions

    Can I use this tool with a hammer and a punch?

    No - This design is best suited to a press.

    Can I use this shot plate with a hydraulic press?

    Yes, all of our shot plate can be used in a press. Be sure to anneal your metal regularly.

    How much silver shall I use with this design?

    You can use approximately 4.5g of silver with this design.

    What shape of silver should I use?

    Small flat ingot:

    Flatten a round ingot to a thickness of approximately 2mm so it covers the design. Press until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression.

    Flat sheet:

    Cut sheet to size so that it covers the design. Press until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression. Thinner sheet can be used with urethane as a pusher to create a hollow impression.

    How do I get the metal out of the die?

    Ensure the dies are free from dust and debris before use. Wipe a very small amount of oil into the die before forming as this will also help removal. Use slightly more metal than you think you need to fill the dies. The excess metal will create a flange around the die that will aid in removing the metal from the plate after hammering/pressing. Carefully use a narrow bladed knife under the excess metal to lever the impression out of the die.

  • Additional Information

    Take a look at our other shapes and symbols shot plates and impression dies.

    If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools.
    If you need a spacer for your press, you can buy one here.
    Gemina Press PushersGemina Press Pushers
  • Processing Times & Shipping

    PROCESSING TIMES

    All purchases are made to order and will take 4-5 working days to dispatch. You will receive a dispatch notification via email with your tracking number. All hardened items will take an extra 3-5 working days for the heat treatment process. These times may increase during promotions, sales and holiday periods.

    UK DELIVERY

    UK delivery is free on orders over £35. A delivery charge of £6 applies to orders under £35.

    INTERNATIONAL DELIVERY

    Free International Shipping on orders over £125GBP. Orders under £125GBP have flat rate shipping charge of £10-25 (depending on country) for all items in basket. We use UPS/DPD for all international deliveries. The buyer is solely responsible for understanding and complying with the import requirements of the destination country and any duty, VAT, taxes, or clearance charges that may be applicable outside of the UK.

    If you need to have your parcel delivered to a PO Box. Please contact us first.

    For more delivery information, please see our delivery policy.

    GPRS

    Gemina Ltd, 15 Somerset Road, East Preston, West Sussex BN161BZ, UK. www.gemina.co.uk
    Wear appropriate Personal Protective Equipment (PPE), such as eye protection, face mask, arms covered, and leather apron.
    Regularly inspect steel tools and implements for wear and sharp edges.
    Keep steel tools dry and well oiled to prevent corrosion.
    Excessive tonnage with mild steel will damage the die.
    Hardened Steel can be brittle and can shatter under extreme stress.
