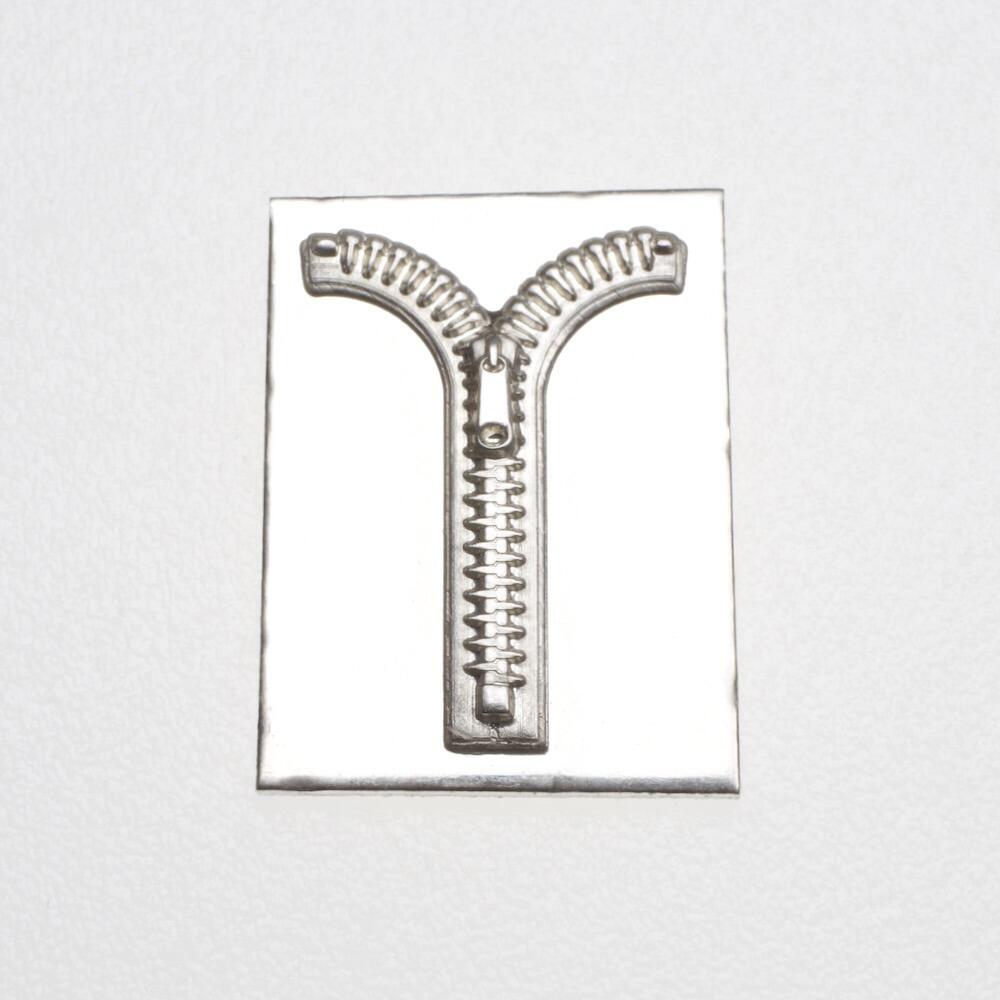

223 - Zipper Impression Die
This detailed impression die creates a zipper design in silver, gold, pewter or copper.
Take a look at our other shapes and symbols shot plates and dies.
Product description
- Specification
The zipper impression die design measures approximately:
Width: 10mm
Height: 14.5mm
Depth: 1mmThis impression die is manufactured from mild steel and measures approximately 20mm thick and 40mm in diameter. Made in England, UK.
- Instructions
Can I use this tool with a hammer and a punch?
No - This design is best suited to a press.
Can I use this tool with a hydraulic press?
Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed regularly before you begin. Intermediate annealing may be required to achieve a full impression.
How much silver do I use with this design?
You can use approximately 2g of silver to achieve a solid impression.
What shape of silver can I use?
Small flat ingot:
Forge your metal into a shape that covers most of the design. Press (or hammer) the metal into the die until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression.
Flat sheet:
Cut sheet to size so that it covers the design. Press (or hammer) until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression. Remember to use sheet that is thicker than the impression depth of the die. Alternatively, you can use thinner sheet with urethane (or a soft metal pusher) to create a hollow impression.
Removing your impression from the die
Occasionally, some dies can 'hold on' to your metal. This is more common when using a press compared to hammering. Ensure the dies are clean before use. If you wish, you can apply a very small amount of oil into the die before forming as this can help removal. Excess metal will create a flange around the design that will aid in removal after hammering or pressing. Carefully use a thin bladed knife under the excess metal to lift the impression out of the die.
Some additional information can be found here shot plate and impression die tips.
General instructions on how to use shot plates can be found here.
- Additional Information
Take a look at our other shapes and symbols shot plates and impression dies.
If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools. If you need a spacer for your press, you can buy one here. - Processing Times & Shipping
