Product description

• Specification

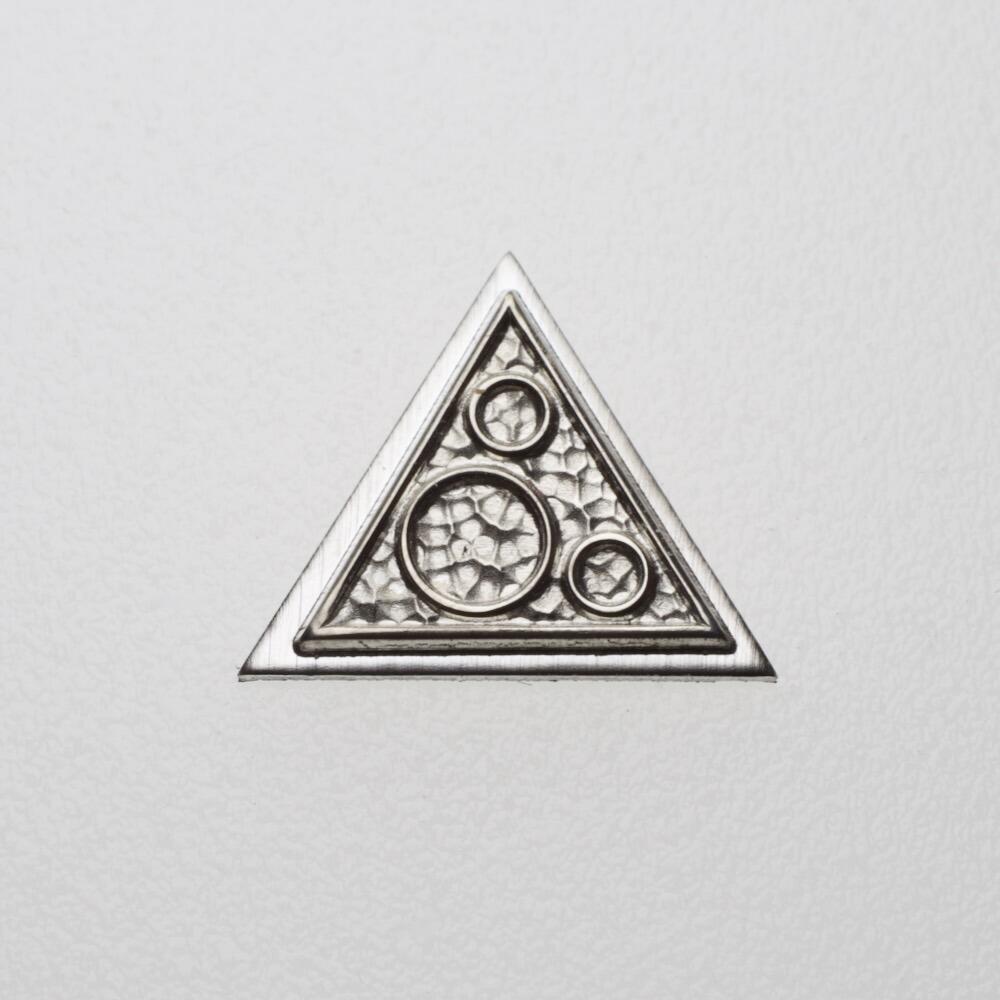

  The abstract triangle 1 design measures approximately:
  Width: 10mm
  Height: 9mm
  Depth: 0.7mm

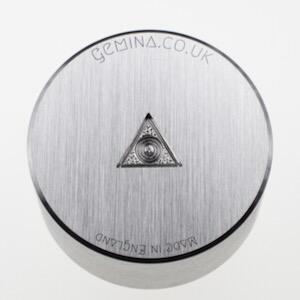

  This shot plate is manufactured from mild steel and measures approximately 20mm thick and 40mm in diameter. Made in England, UK.

• Instructions

  Can I use this tool with a hammer and a punch?

  Yes - When using a hammer and punch, it's crucial to work over a solid and rigid surface such as a stump, anvil or a concrete floor. Without a solid surface, no amount of hammering will produce good results! The size of your hammer plays a big part too - a 4lb lump hammer is ideal. Always use a punch when hammering your metal. Be careful to avoid striking the hammer directly on the die or shot plate.

  Can I use this tool with a hydraulic press?

  Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed regularly before you begin. Intermediate annealing may be required to achieve a full impression.

  How much silver do I use with this design?

  You can use approximately 0.6g of silver to achieve a solid impression.

  What shape of silver can I use?

  Flat sheet:

  Cut sheet to size so that it covers the design. Press (or hammer) until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression. Remember to use sheet that is thicker than the impression depth of the die. Alternatively, you can use thinner sheet with urethane (or a soft metal pusher) to create a hollow impression.

  Removing your impression from the die

  Occasionally, some dies can 'hold on' to your metal. This is more common when using a press compared to hammering. Ensure the dies are clean before use. If you wish, you can apply a very small amount of oil into the die before forming as this can help removal. Excess metal will create a flange around the design that will aid in removal after hammering or pressing. Carefully use a thin bladed knife under the excess metal to lift the impression out of the die.

  Some additional information can be found here shot plate and impression die tips.

• Additional Information

  Take a look at our other shapes and symbols shot plates and impression dies.

  If you have a solid and rigid work surface, you could use our Punch (Force) tool with a 2-4lb lump hammer.	If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools.	If you need a spacer for your press, you can buy one here.

• Processing Times & Shipping

  PROCESSING TIMES

  All purchases are made to order and will take 4-5 working days to dispatch. You will receive a dispatch notification via email with your tracking number. All hardened items will take an extra 3-5 working days for the heat treatment process. These times may increase during promotions, sales and holiday periods.

  UK DELIVERY

  UK delivery is free on orders over £30. A delivery charge of £6 applies to orders under £30.

  INTERNATIONAL DELIVERY

  Free International Shipping on orders over £125GBP. Orders under £125GBP have flat rate shipping charge of £10-25 (depending on country) for all items in basket. We use UPS/DPD for all international deliveries. The buyer is solely responsible for understanding and complying with the import requirements of the destination country and any duty, VAT, taxes, or clearance charges that may be applicable outside of the UK.

  If you need to have your parcel delivered to a PO Box. Please contact us first.

  For more delivery information, please see our delivery policy.

  GPRS

  Gemina Ltd, 15 Somerset Road, East Preston, West Sussex BN161BZ, UK. www.gemina.co.uk
  Keep away from damp or wet sources. Recycle FE-40 Metal. Use non-toxic, universal oil to prevent corrosion. To reduce the risk of injury wear appropriate Personal Protective Equipment (PPE), such as eye protection, face mask, arms covered, and leather apron. Regularly inspect steel tools and implements for wear. Ensure a proper hazard identification and risk assessment is conducted. Our EU Responsible Person for product safety compliance is EU Compliance Partner, located at Pärnu mnt. 139b – 14, 11317 Tallinn, Estonia. For any inquiries, please visit www.eucompliancepartner.com.
