282 - Cat Face Impression Die


282 - Gemina Cat Face Impression DieClick the image to enlarge
282

282 - Cat Face Impression Die

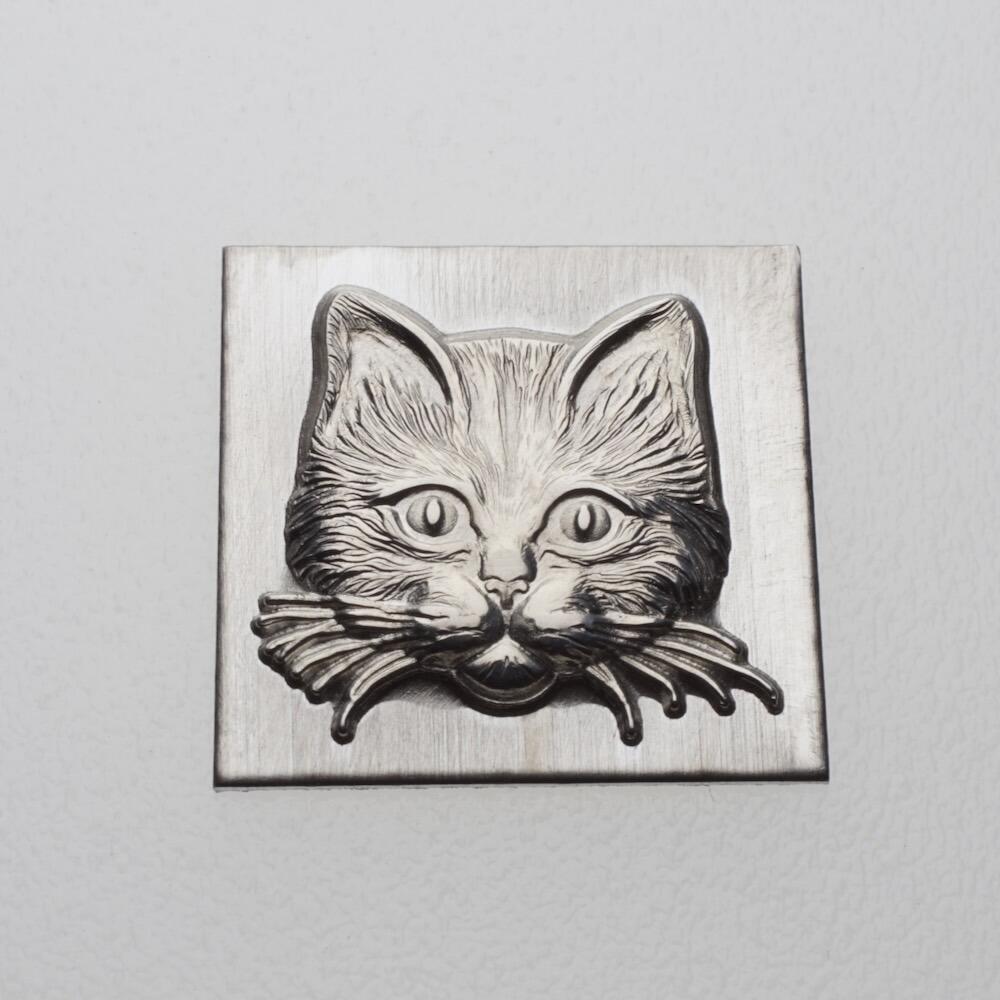

A feline face for all the cat devotees. Heavily whiskered and in need of feeding! This impression die can be used with gold, silver, copper and pewter.

A hydraulic press is recommended to form this design and achieve all of the fur detail, but if you are well practised in hammer forming using shot plates and your setup is solid, it can be achieved using a hammer and large punch.

Take a look at some of our other animals and insects designs.

chubby fishbatCat Silhouette

Product description

  • Specification

    The cat face design measures approximately:
    Width: 12mm
    Height: 11mm
    Depth: 1.2mm

    This impression die is manufactured from mild steel and measures approximately 20mm thick and 40mm in diameter. Made in England, UK.

  • Instructions

    Can I use this tool with a hammer and a punch?

    It is possible to form this design with a hammer and punch, but for the best results a hydraulic press is a better option to bring out all of the fur detail around the cats face. When using a hammer and punch, it's crucial to work over a solid and rigid surface such as a stump, anvil or a concrete floor. Without a solid surface, no amount of hammering will produce good results! The size of your hammer plays a big part too - a 4lb lump hammer is ideal. Always use a punch when hammering your metal. Be careful to avoid striking the hammer directly on the die or shot plate.

    Can I use this tool with a hydraulic press?

    Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed before you begin. Intermediate annealing may be required to achieve a full impression.

    How much silver do I use with this design?

    You can use approximately 1.6g of silver to achieve a solid impression.

    What shape of silver can I use?

    Small flat ingot:

    Forge your metal into a shape that covers most of the design. Press (or hammer) the metal into the die until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression.

    Flat sheet:

    Cut sheet to size so that it covers the design. Press (or hammer) until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression. Remember to use sheet that is thicker than the impression depth of the die. Alternatively, you can use thinner sheet with urethane (or a soft metal pusher) to create a hollow impression.

    Removing your impression from the die

    Occasionally, some dies can 'hold on' to your metal. This is more common when using a press compared to hammering. Ensure the dies are clean before use. If you wish, you can apply a very small amount of oil into the die before forming as this can help removal. Excess metal will create a flange around the design that will aid in removal after hammering or pressing. Carefully use a thin bladed knife under the excess metal to lift the impression out of the die.

    Some additional information can be found here shot plate and impression die tips.

  • Additional Information

    Take a look at some of our other animals and insects shot plates and impression dies.

    If you have a solid and rigid work surface, you could use our Punch (Force) tool with a 2-4lb lump hammer.If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools.
    If you need a spacer for your press, you can buy one here.
    Gemina Punch (Force) ToolGemina Press PushersGemina Press Pushers
  • Processing Times & Shipping

    PROCESSING TIMES

    All purchases are made to order and will take 4-5 working days to dispatch. You will receive a dispatch notification via email with your tracking number. All hardened items will take an extra 3-5 working days for the heat treatment process. These times may increase during promotions, sales and holiday periods.

    UK DELIVERY

    UK delivery is free on orders over £35. A delivery charge of £6 applies to orders under £35.

    INTERNATIONAL DELIVERY

    Free International Shipping on orders over £125GBP. Orders under £125GBP have flat rate shipping charge of £10-25 (depending on country) for all items in basket. We use UPS/DPD for all international deliveries. The buyer is solely responsible for understanding and complying with the import requirements of the destination country and any duty, VAT, taxes, or clearance charges that may be applicable outside of the UK.

    If you need to have your parcel delivered to a PO Box. Please contact us first.

    For more delivery information, please see our delivery policy.

    GPRS

    Gemina Ltd, 15 Somerset Road, East Preston, West Sussex BN161BZ, UK. www.gemina.co.uk
    Wear appropriate Personal Protective Equipment (PPE), such as eye protection, face mask, arms covered, and leather apron.
    Regularly inspect steel tools and implements for wear and sharp edges.
    Keep steel tools dry and well oiled to prevent corrosion.
    Excessive tonnage with mild steel will damage the die.
    Hardened Steel can be brittle and can shatter under extreme stress.
