Product description

• Specification

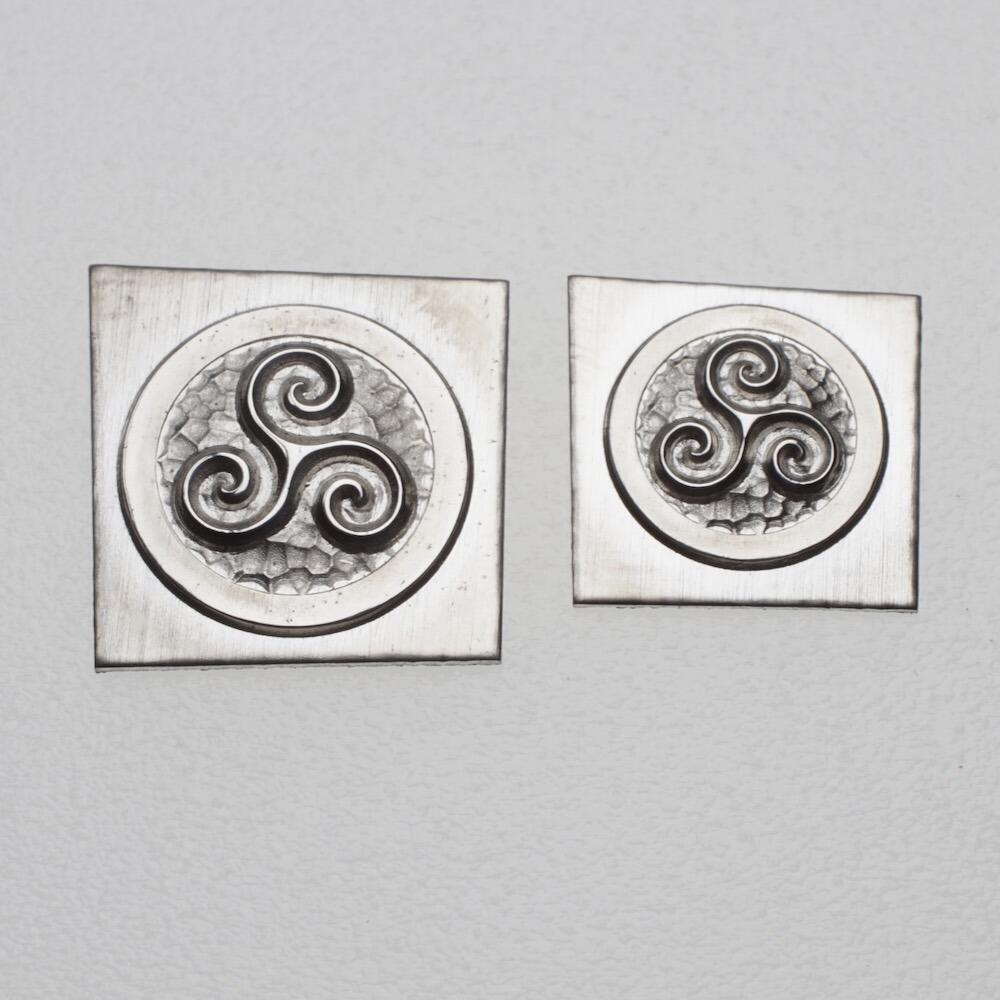

  The Triskele duo shot plate designs measure approximately:
  Width:  8 & 10mm
  Length:  8 & 10mm
  Depth:  1.4mm

  This shot plate is manufactured from mild steel and measures approximately 20mm thick and 50mm in diameter. Made in England, UK.

• Instructions

  Can I use this tool with a hammer and a punch?

  Yes - When using a hammer and punch, it's crucial to work over a solid and rigid surface such as a stump, anvil or a concrete floor. Without a solid surface, no amount of hammering will produce good results! The size of your hammer plays a big part too - a 4lb lump hammer is ideal. Always use a punch when hammering your metal. Be careful to avoid striking the hammer directly on the die or shot plate.

  Can I use this tool with a hydraulic press?

  Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed regularly before you begin. Small designs such as these require careful, gentle pressing. There is no need to use the same amount of force as a larger design.

  Can I use this tool with the YQK-70 hydraulic crimping tool?

  Yes, this plate can be used in the YQK-70 along with our hardened anvil.

  How much silver do I use with this design?

  You can use approximately 0.7-1.2g of silver to achieve a solid impression.

  What shape of silver can I use?

  Round shot:

  Melt your metal into round shot. For best results, clean or pickle your metal before placing into the die. Use a hammer and punch (or press) to force the silver into the die. If hammering, anneal your metal after every 3 or 4 heavy blows.

  Small flat ingot:

  Forge your metal into a shape that covers most of the design. Press (or hammer) the metal into the die until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression.

  Flat sheet:

  Cut sheet to size so that it covers the design. Press (or hammer) until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression. Remember to use sheet that is thicker than the impression depth of the die. Alternatively, you can use thinner sheet with urethane (or a soft metal pusher) to create a hollow impression.

  Removing your impression from the die

  Occasionally, some dies can 'hold on' to your metal. This is more common when using a press compared to hammering. Ensure the dies are clean before use. If you wish, you can apply a very small amount of oil into the die before forming as this can help removal. Excess metal will create a flange around the design that will aid in removal after hammering or pressing. Carefully use a thin bladed knife under the excess metal to lift the impression out of the die.

  Some additional information can be found here shot plate and impression die tips.

• Additional Information

  Take a look at our other shapes and symbols shot plates and impression dies.

  If you have a solid and rigid work surface, you could use our Punch (Force) tool with a 2-4lb lump hammer.	Or if you need a pusher for your press, you can buy one from our range of press tools.
