319 - Concentric Bail Impression Dies - 3 Sizes

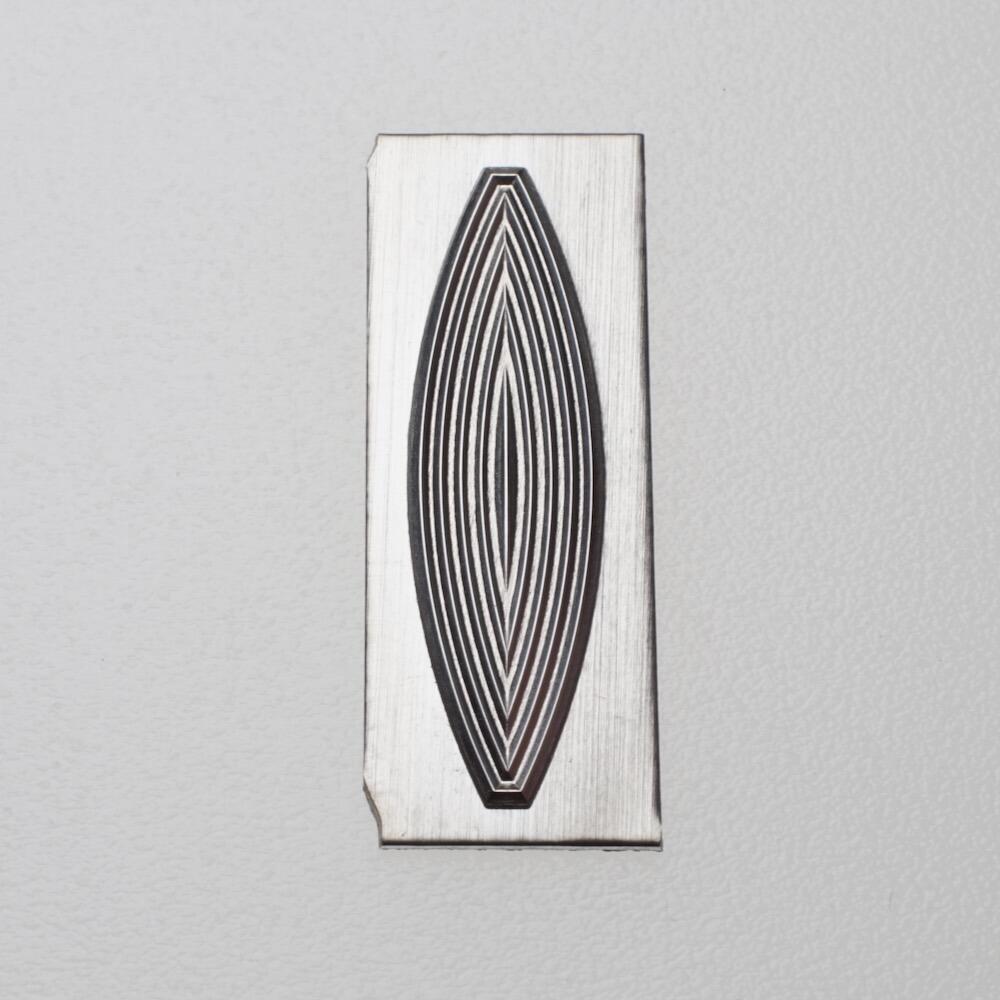

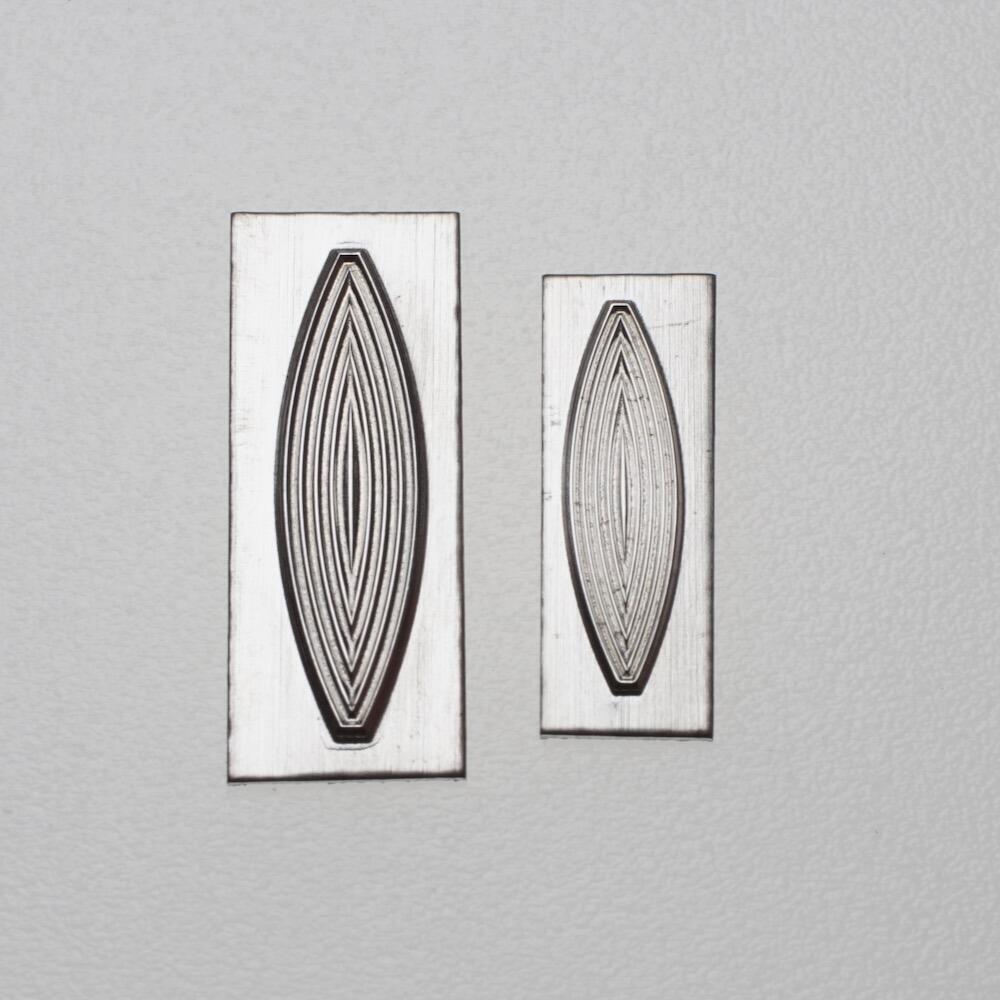

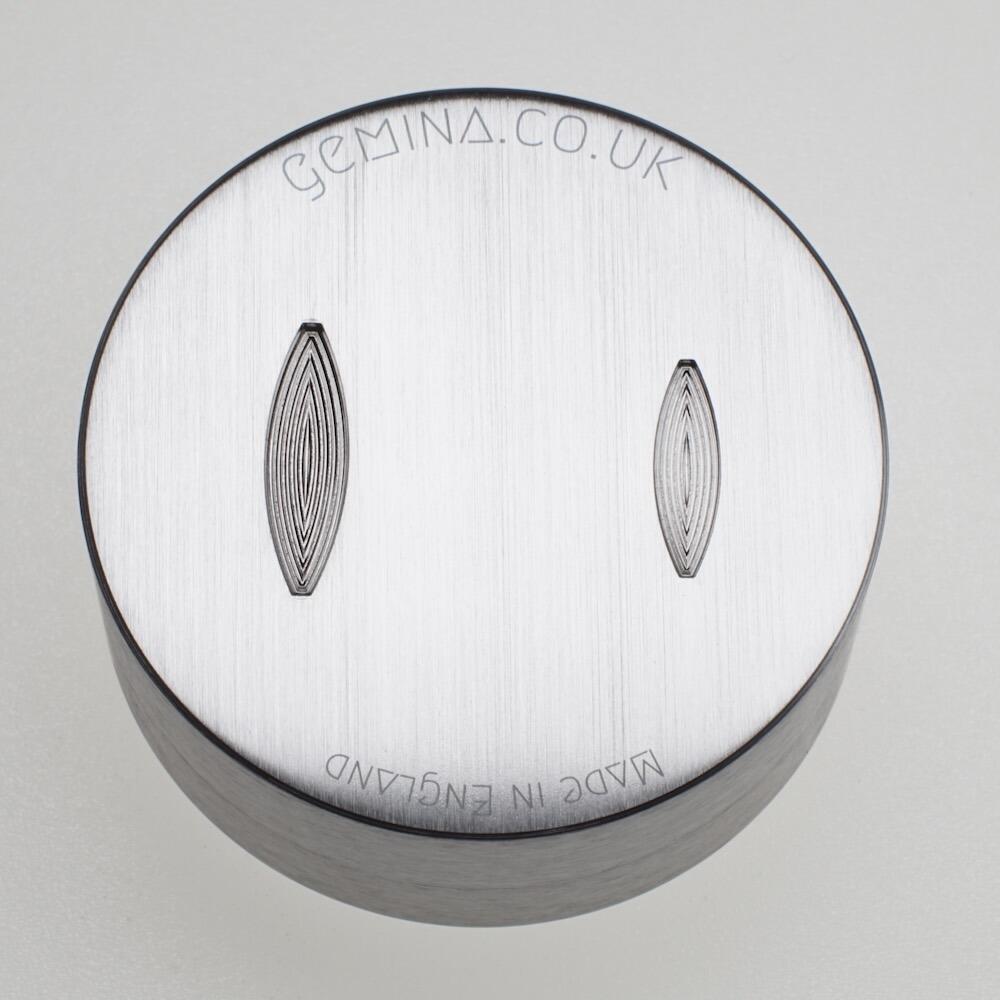

A matching set of pendant bail dies featuring a ridged, concentric design. This bail design is available in 3 sizes ranging from 14 - 25mm in length. The largest size can be purchased by itself, the smaller sizes are available as a pair.
These bail dies are designed to be used with thin sheet. They can also be used as a template if you want to cut a bail shape - simply press your metal very lightly to achieve the outline and use this as a guide when sawing a perfectly symmetrical bail.
You can save £6 if you purchase all 3 designs together. Please select your preferred option from the dropdown list.
Take a look at some of our other bail designs.
Product description
- Specification

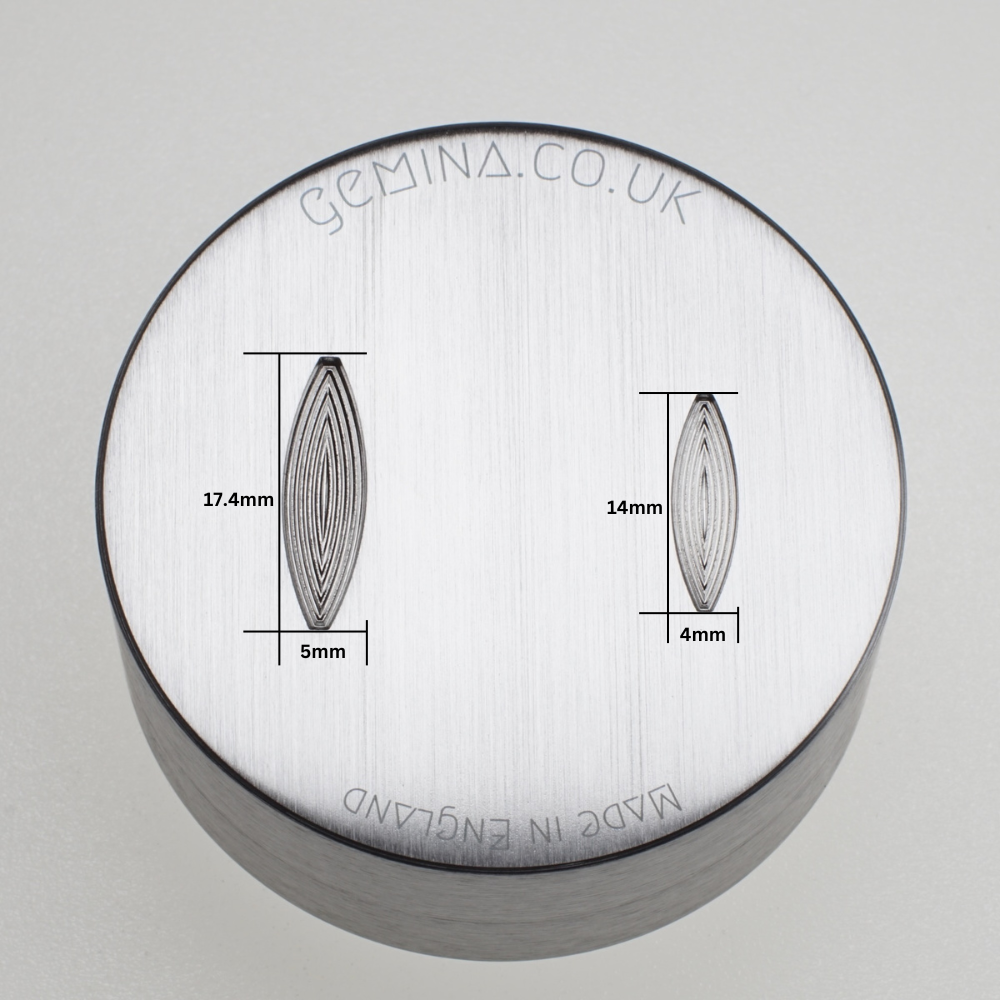

The concentric bail pair designs measures approximately:
Small
Width: 4mm
Height: 14mm
Depth: 0.6mmMedium
Width: 5mm
Height: 17.4mm

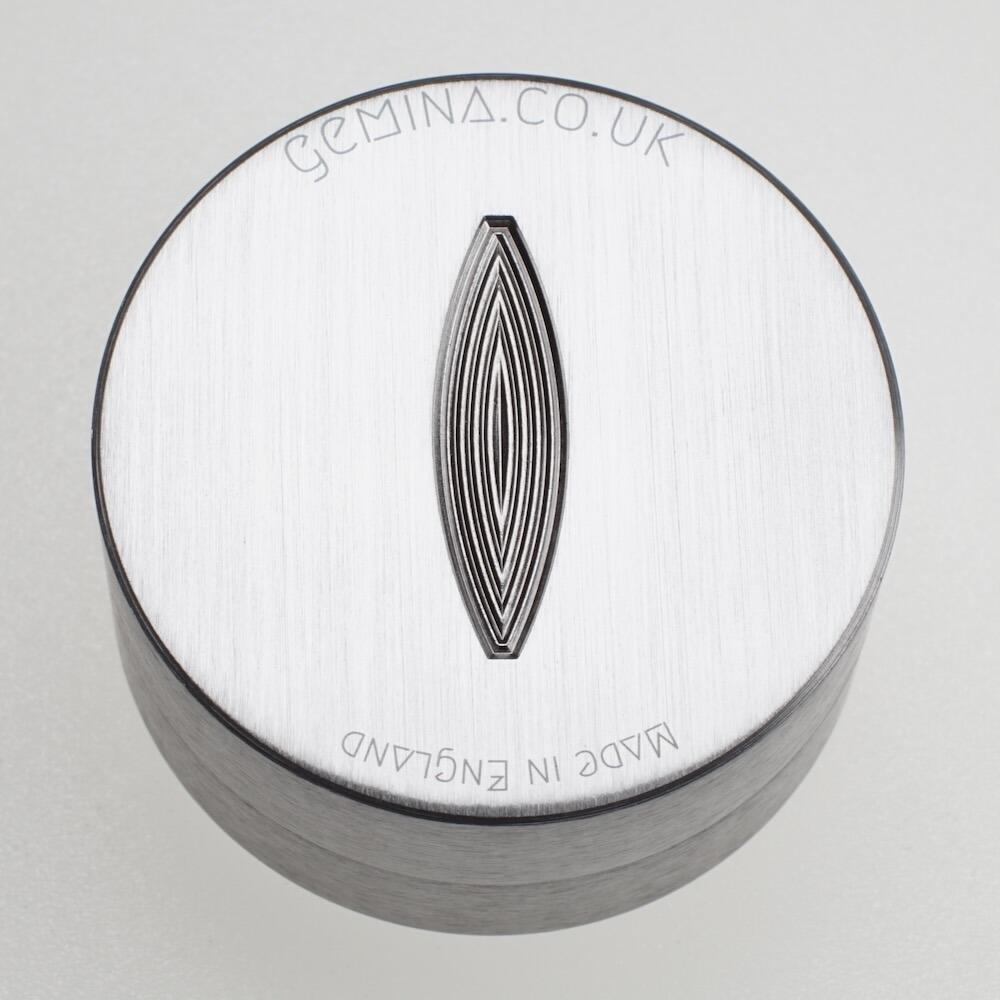

Depth: 0.6mmThe large single concentric bail design measures approximately:

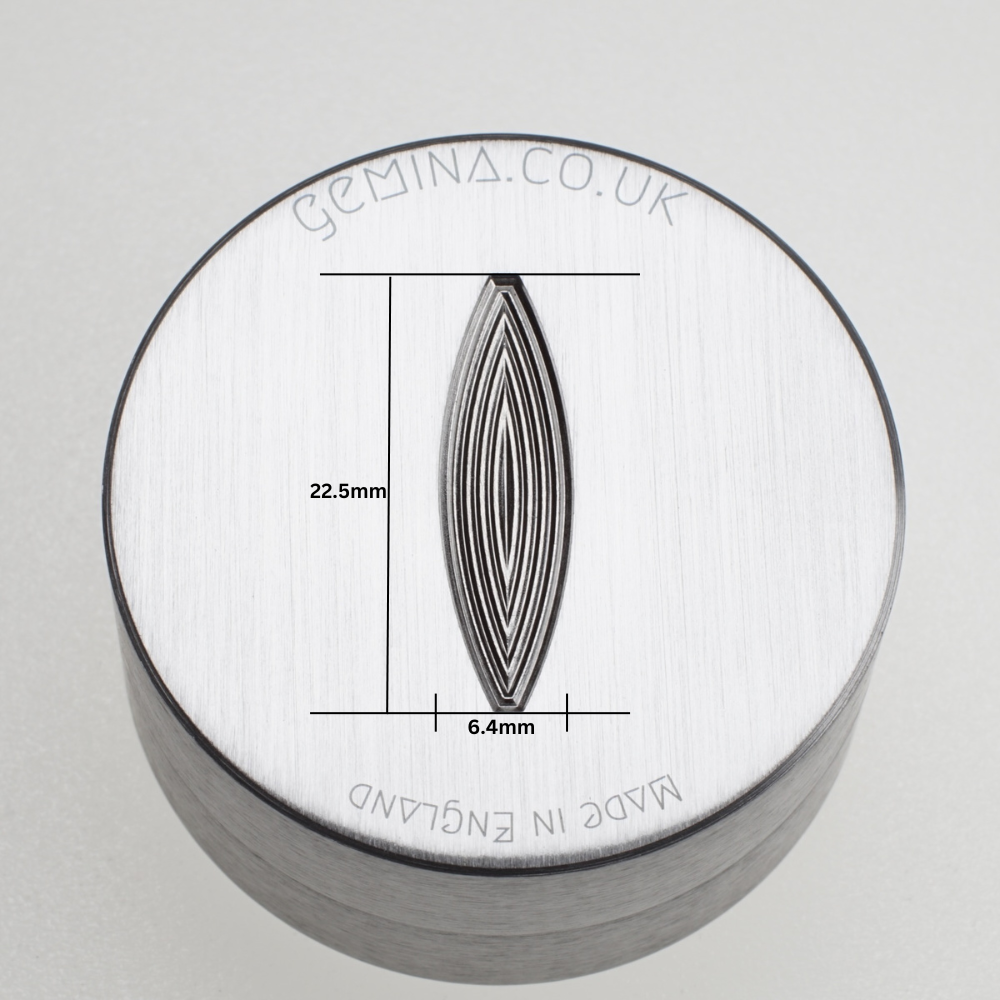

Width: 6.4mm
Height: 22.5mm
Depth: 0.6mmThe large concentric bail impression die is manufactured from mild steel and measures approximately 20mm thick and 40mm in diameter.
The medium and small concentric bail impression die is manufactured from mild steel and measures approximately 20mm thick and 50mm in diameter.
Made in England, UK.
- Instructions
Can I use this tool with a hammer and a punch?
No - This design is intended to be used in a hydraulic press.
Can I use this tool with a hydraulic press?
Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed regularly before you begin. Intermediate annealing may be required to achieve a full impression.
Can I use this tool with the YQK-70 hydraulic crimping tool?
No - These designs cannot be used in the crimping tool.
How much silver do I use with this design?
Use your preferred thickness of sheet to cover the design.
What shape of silver can I use?
Flat sheet:
Cut sheet to size so that it covers the bail design. Press until you have an outline of the bail. Trim, anneal and repeat until you have a full depth impression. Remember to use sheet that is thicker than the impression depth of the die. Alternatively, you can use thinner sheet with urethane (or a soft metal pusher) to create a reduced thickness impression.
Removing your impression from the die
Occasionally, some dies can 'hold on' to your metal. This is more common when using a press compared to hammering. Ensure the dies are clean before use. If you wish, you can apply a very small amount of oil into the die before forming as this can help removal. Excess metal will create a flange around the design that will aid in removal after hammering or pressing. Carefully use a thin bladed knife under the excess metal to lift the impression out of the die.
Some additional information can be found here shot plate and impression die tips.
- Additional Information
Take a look at our other bail impression dies.
If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools. If you need a spacer for your press, you can buy one here. - Processing Times & Shipping
