321 - Scroll Bail Impression Dies - 3 Sizes
A plain bail featuring a scroll pair at either end. These bail dies are designed to be used with thin sheet and are available in 3 sizes ranging from 14 - 25mm in length.
The bail dies can also be used as a template - simply press your metal very lightly to achieve the outline and use this as a guide for sawing a perfectly symmetrical bail.
The large bail is available as a single design. The smaller sizes are sold as a pair on a larger die.
You can save £6 when you purchase all 3 designs together. Select your preferred option from the dropdown.
Take a look at some of our other bail designs.
Product description
- Specification

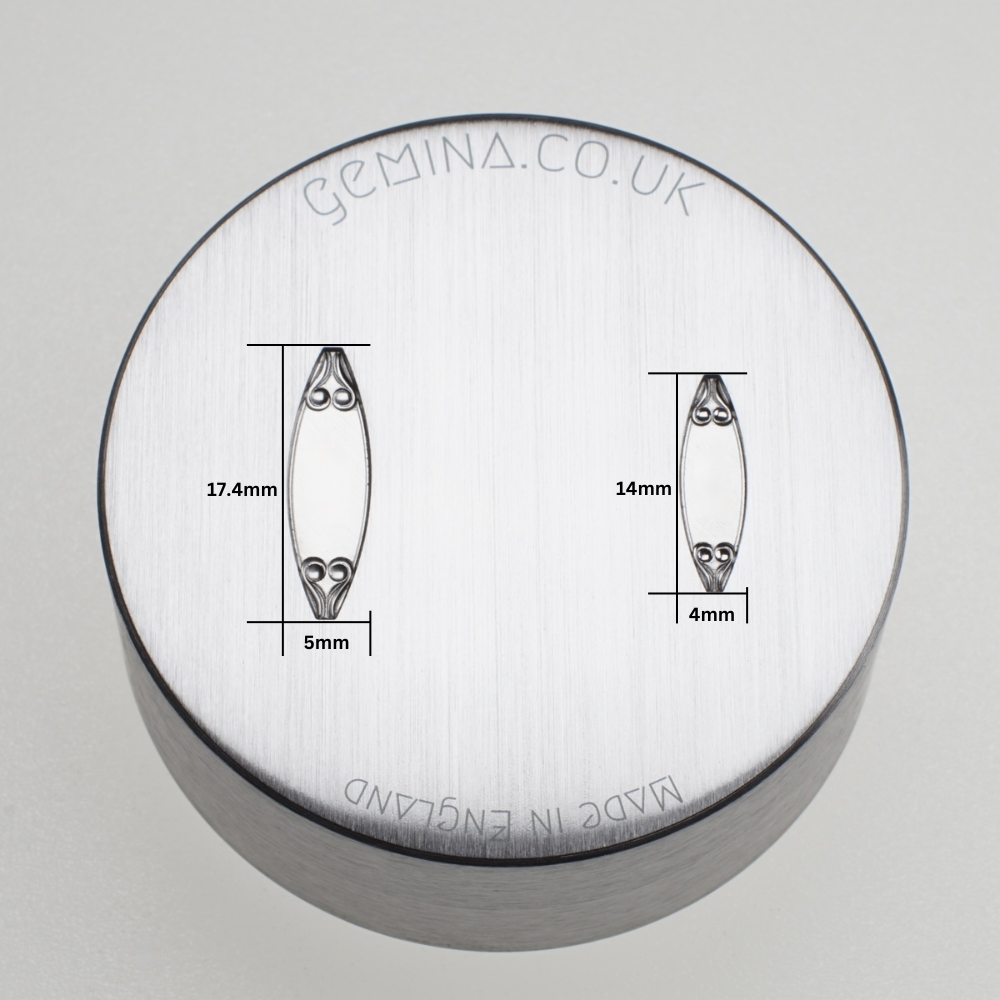

The scroll bail pair designs measure approximately:
Small
Width: 4mm
Height: 14mm
Depth: 0.6mmMedium
Width: 5mm
Height: 17.4mm

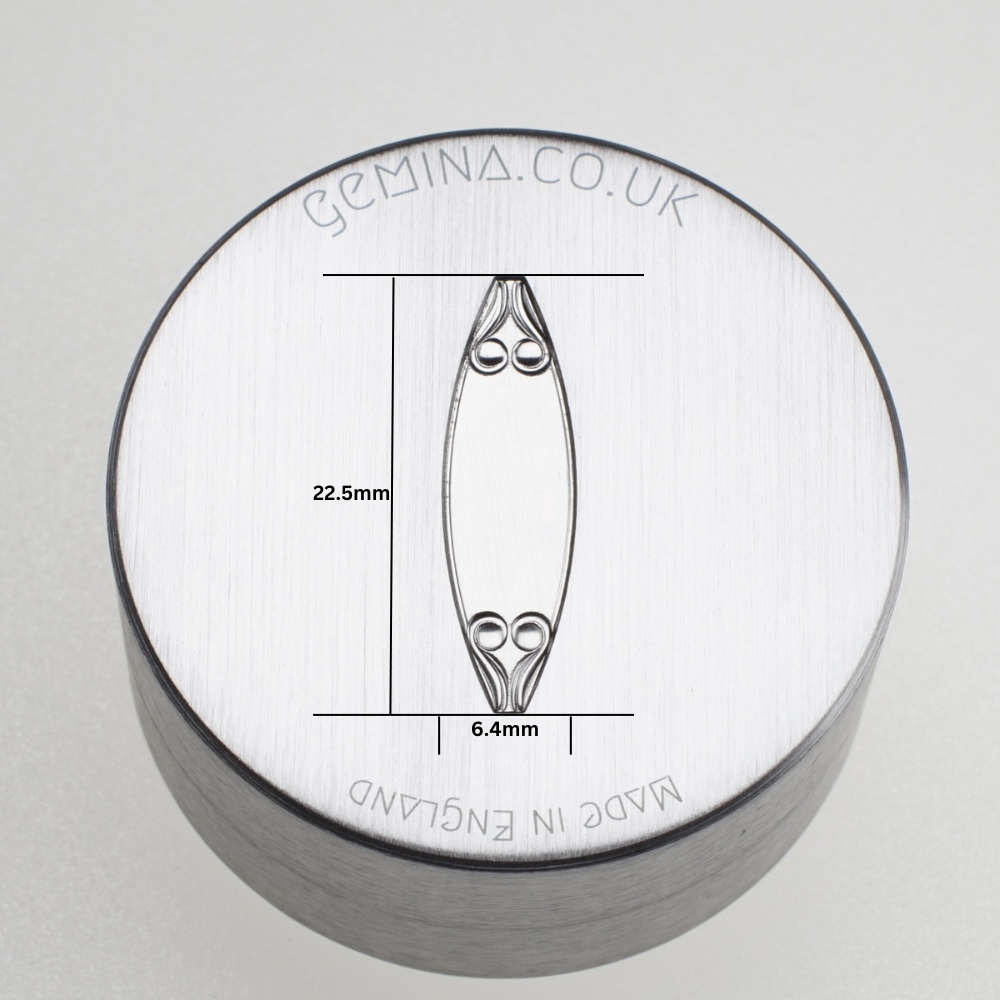

Depth: 0.6mmThe large scroll bail single design measures approximately:
Width: 6.4mm
Height: 22.5mm

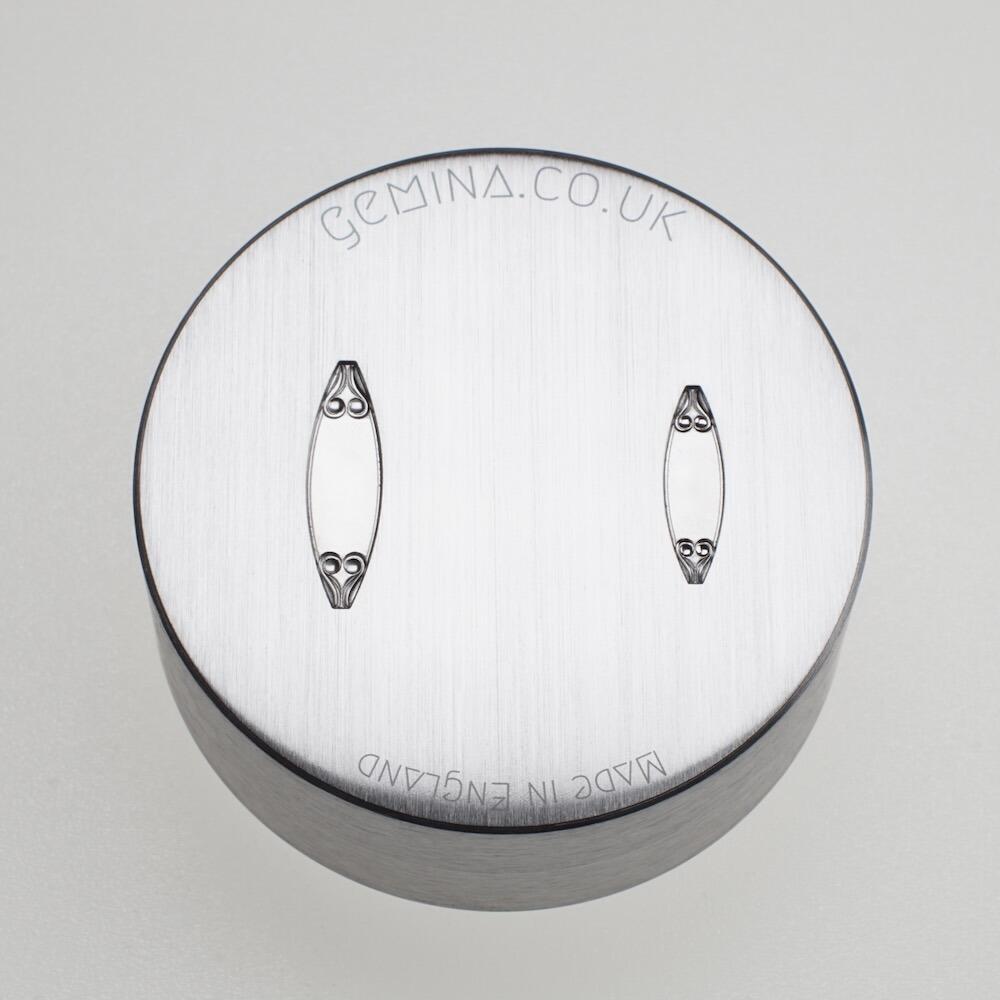

Depth: 0.6mmThe small and medium bail impression die is manufactured from mild steel and measures approximately 20mm thick and 50mm in diameter.

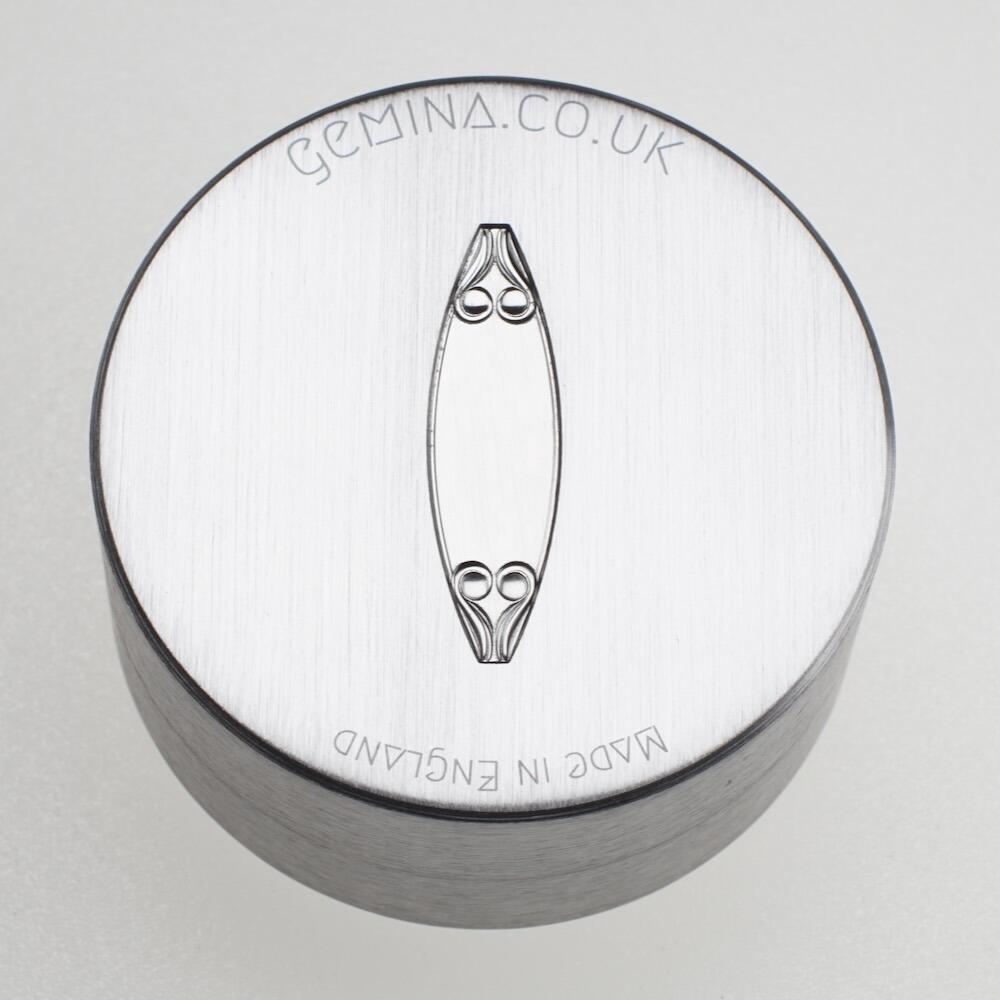

The large bail impression die is manufactured from mild steel and measures approximately 20mm thick and 40mm in diameter.Made in England, UK.
- Instructions
Can I use this tool with a hammer and a punch?
No - This design is intended to be used in a hydraulic press.
Can I use this tool with a hydraulic press?
Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed regularly before you begin. Intermediate annealing may be required to achieve a full impression.
Can I use this tool with the YQK-70 hydraulic crimping tool?
NO - This design cannot be used in the crimping tool.
How much silver do I use with this design?
Cover the design completely with your chosen thickness of sheet.
What shape of silver can I use?
Flat sheet:

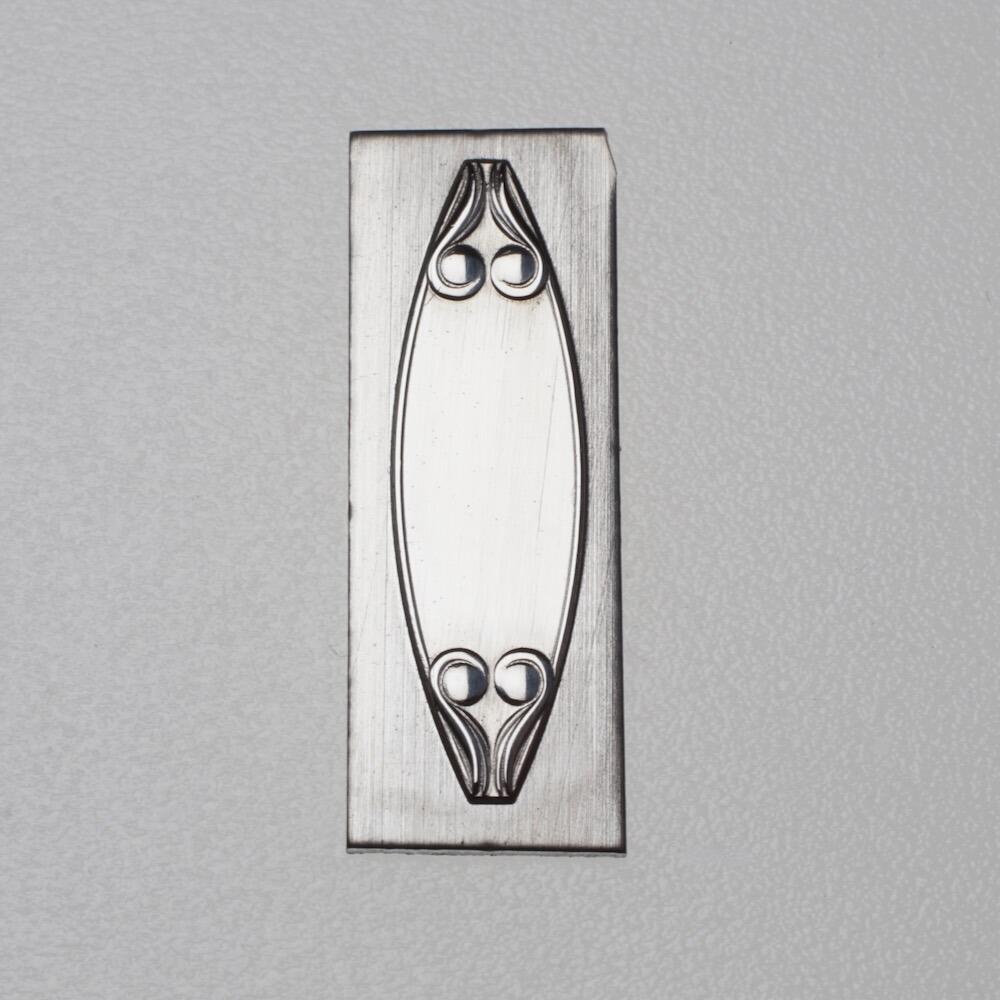

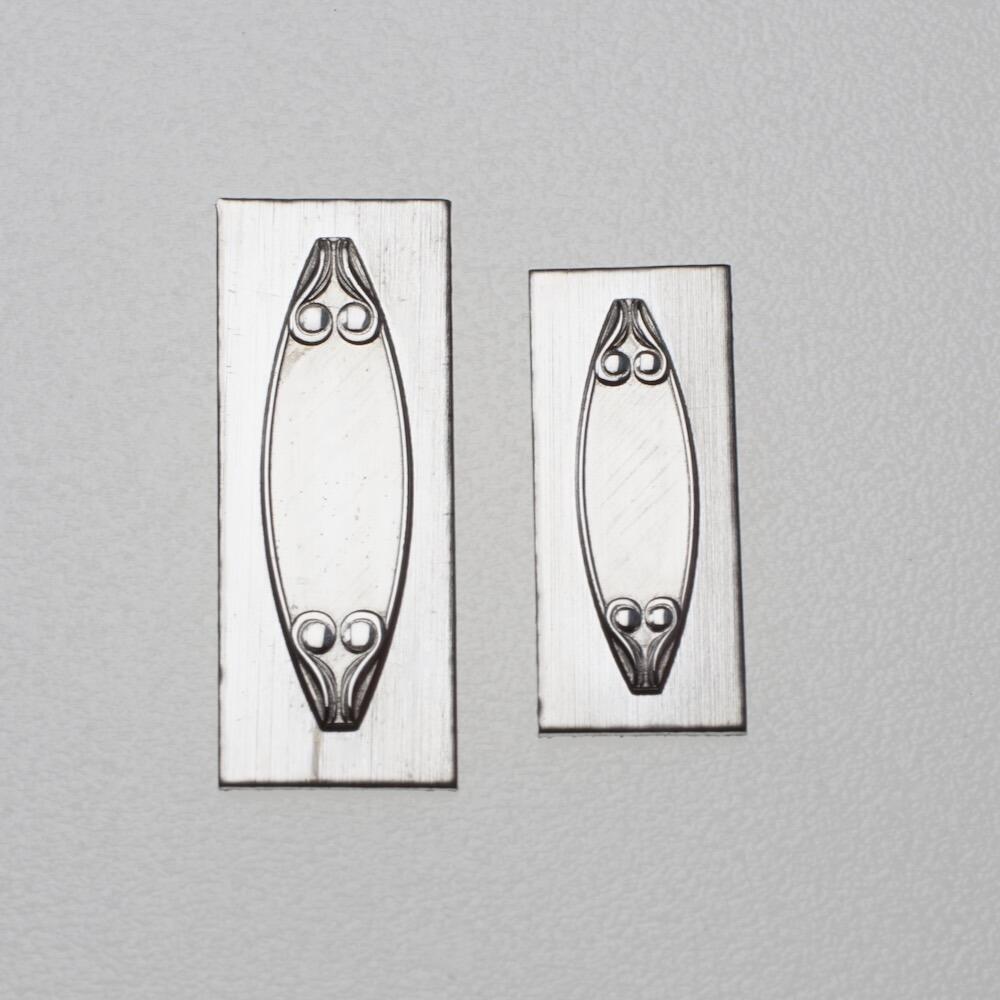

Cut sheet to size so that it covers the design. Press until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression. Remember to use sheet that is thicker than the impression depth of the die. Alternatively, you can use thinner sheet with urethane (or a soft metal pusher) to create a hollow impression.
Removing your impression from the die
Occasionally, some dies can 'hold on' to your metal. This is more common when using a press compared to hammering. Ensure the dies are clean before use. If you wish, you can apply a very small amount of oil into the die before forming as this can help removal. Excess metal will create a flange around the design that will aid in removal after hammering or pressing. Carefully use a thin bladed knife under the excess metal to lift the impression out of the die.
Some additional information can be found here shot plate and impression die tips.
- Additional Information
Take a look at our other bail impression dies.
If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools. If you need a spacer for your press, you can buy one here. - Processing Times & Shipping
