Product description

• Specification

  The wyvern dragon design measures approximately:
  Width: 14.7mm
  Height: 15.1mm
  Depth: 0.5mm

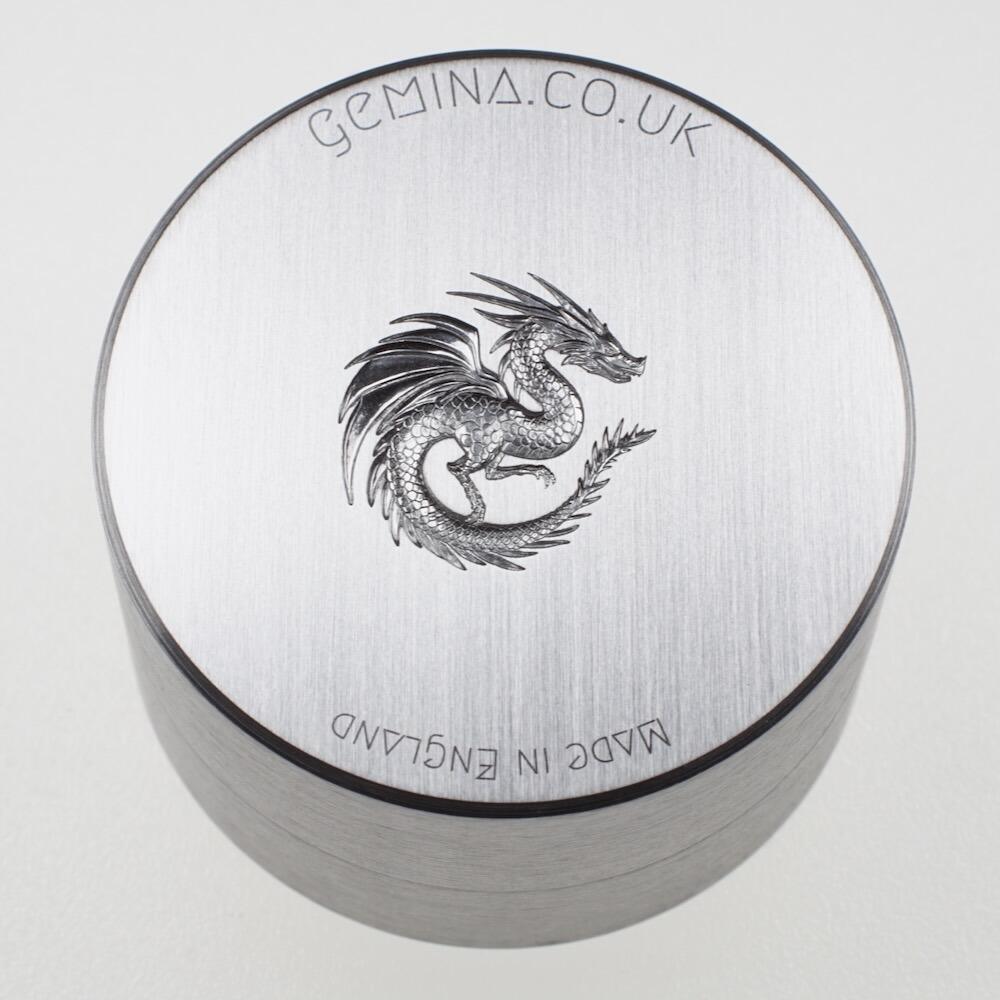

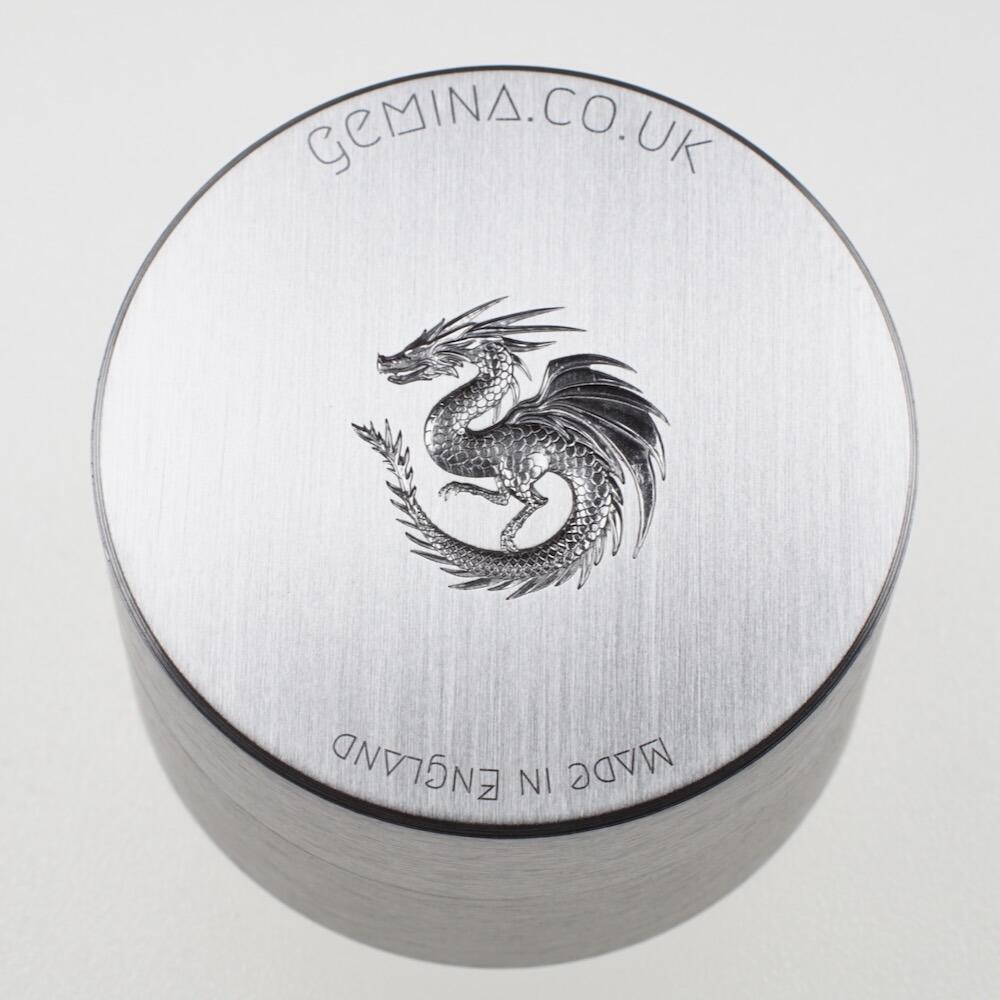

  This impression die is manufactured from mild steel and measures approximately 25mm thick and 40mm in diameter. Made in England, UK.

• Instructions

  Can I use this tool with a hammer and a punch?

  No - This design is intended to be used in a hydraulic press.

  Can I use this tool with a hydraulic press?

  Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed regularly before you begin. Intermediate annealing may be required to achieve a full impression.

  How much silver do I use with this design?

  Use sufficient sheet to cover the design.

  What shape of silver can I use?

  Flat sheet:

  Cut sheet to size so that it covers the design. Press (or hammer) until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression. Remember to use sheet that is thicker than the impression depth of the die. Alternatively, you can use thinner sheet with urethane (or a soft metal pusher) to create a hollow impression.

  Removing your impression from the die

  Occasionally, some dies can 'hold on' to your metal. This is more common when using a press compared to hammering. Ensure the dies are clean before use. If you wish, you can apply a very small amount of oil into the die before forming as this can help removal. Excess metal will create a flange around the design that will aid in removal after hammering or pressing. Carefully use a thin bladed knife under the excess metal to lift the impression out of the die.

  Some additional information can be found here shot plate and impression die tips.

• Additional Information

  Take a look at our other animals and insect shot plates and impression dies.

  If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools.	If you need a spacer for your press, you can buy one here.
