342 - Medium Starfish Impression Die

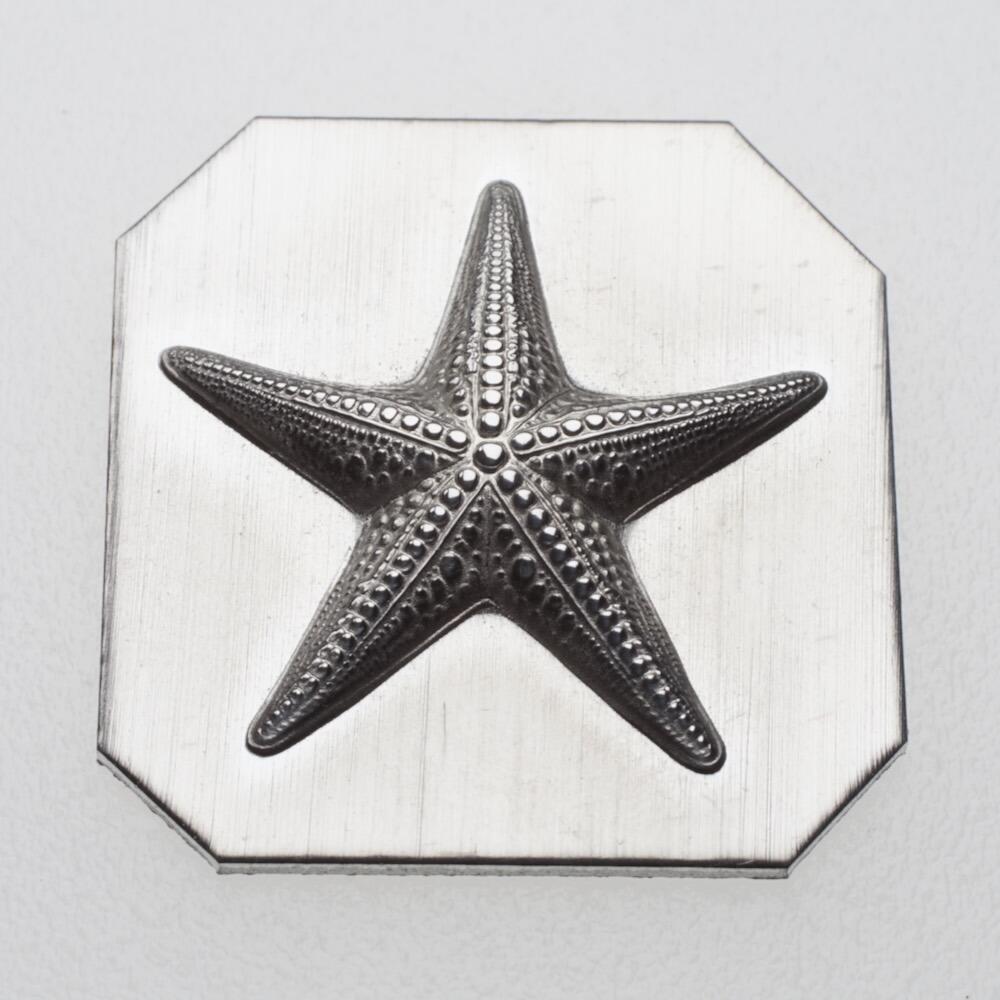

Gemina Large Starfish Impression DieClick the image to enlarge
342

342 - Medium Starfish Impression Die


This is a highly detailed and textured starfish design well suited to creating pendants and large earrings. At 17mm wide, this design requires a hydraulic press.

Take a look at our other beaches and oceans shot plates and impression dies.

starfishLobsterLimpet

Product description

  • Specification

    The medium starfish design measures approximately:
    Width: 17mm
    Height: 16.1mm
    Depth: 1.9mm

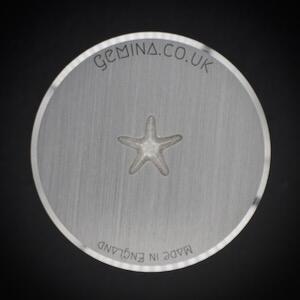

    This impression die is manufactured from mild steel and measures approximately 20mm thick and 40mm in diameter. Made in England, UK.

  • Instructions

    Can I use this tool with a hammer and a punch?

    No - This design is intended to be used in a hydraulic press.

    Can I use this tool with a hydraulic press?

    Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed regularly before you begin. Intermediate annealing may be required to achieve a full impression.

    How much silver do I use with this design?

    You can use approximately 4-5g of silver to achieve a solid impression.

    What shape of silver can I use?

    Small flat ingot:

    Forge your metal into a shape that covers most of the design. Press the metal into the die until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression.

    Flat sheet:

    Cut sheet to size so that it covers the design. Press until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression. Remember to use sheet that is thicker than the impression depth of the die. Alternatively, you can use thinner sheet with urethane (or a soft metal pusher) to create a hollow impression.

    Removing your impression from the die

    Occasionally, some dies can 'hold on' to your metal. This is more common when using a press compared to hammering. Ensure the dies are clean before use. If you wish, you can apply a very small amount of oil into the die before forming as this can help removal. Excess metal will create a flange around the design that will aid in removal after hammering or pressing. Carefully use a thin bladed knife under the excess metal to lift the impression out of the die.

    Some additional information can be found here shot plate and impression die tips.

  • Additional Information

    Take a look at our other beaches and oceans shot plates and impression dies.

    If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools.
    If you need a spacer for your press, you can buy one here.
    Gemina Press PushersGemina Press Pushers
