372 - Fox Face 2 Impression Die

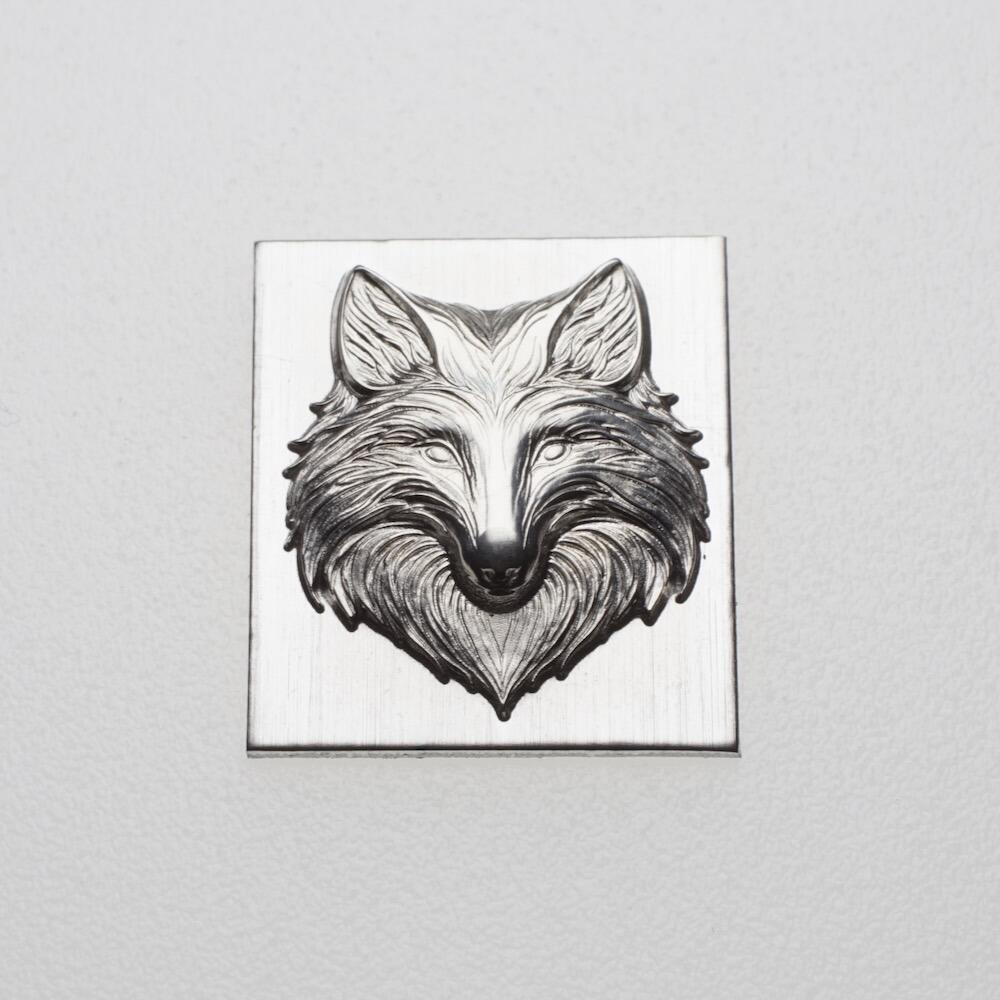

This fox face is a medium size design (16mm high). Use with a hydraulic press for best results. We have a smaller version of this design on our fox face duo.
Take a look at some of our other animals and insects designs.
Product description
- Specification
The fox face design measures approximately:
Width: 13.8mm
Height: 16.2mm

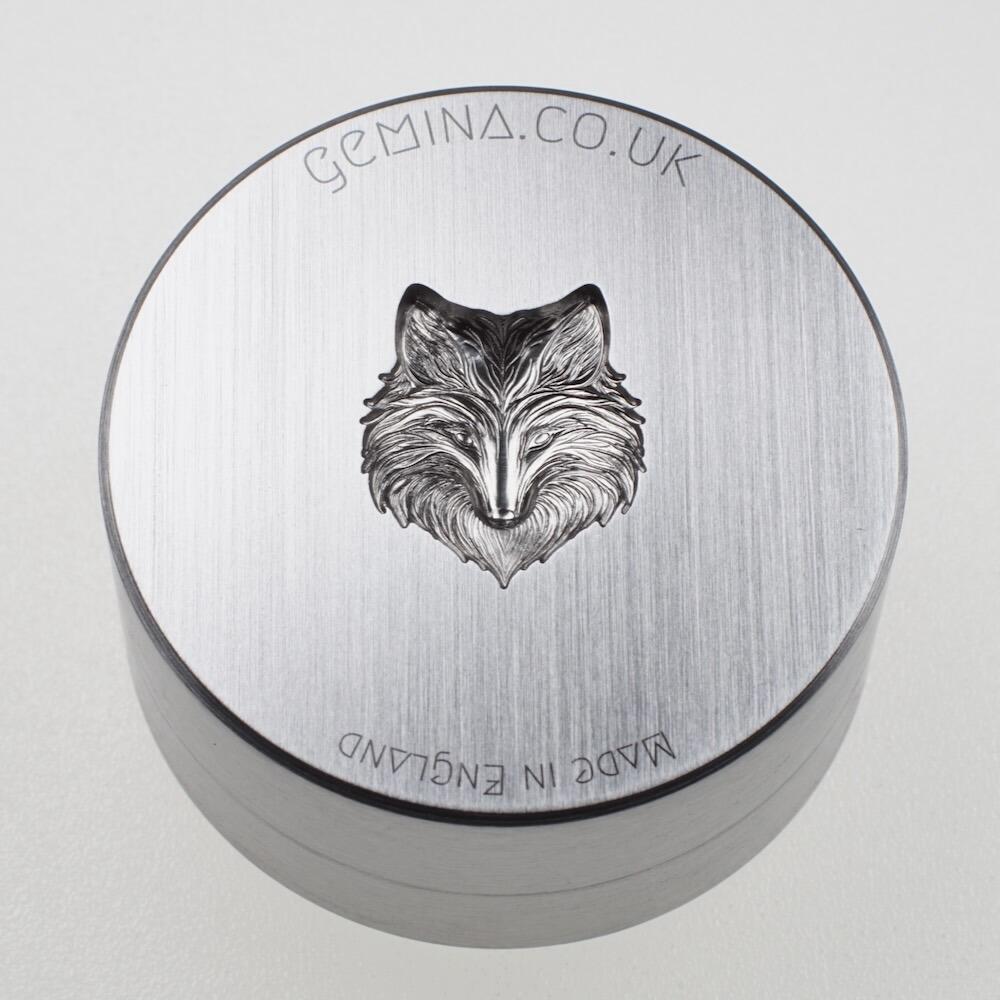

Depth: 2.5mmThis impression die is manufactured from mild steel and measures approximately 20mm thick and 40mm in diameter. Made in England, UK.
- Instructions
Can I use this tool with a hammer and a punch?
No - This design is intended to be used in a hydraulic press.
Can I use this tool with a hydraulic press?
Yes, all Gemina impression dies and shot plates can be used in a press. Ensure your metal is annealed regularly before you begin. Intermediate annealing may be required to achieve a full impression.
How much silver do I use with this design?
You can use approximately 4g of silver to achieve a solid impression.
What shape of silver can I use?
Small flat ingot:
Forge your metal into a shape that covers most of the design. Press the metal into the die until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression.
Flat sheet:
Cut sheet to size so that it covers the design. Press until you have an outline of the design. Trim, anneal and repeat until you have a full depth impression. Remember to use sheet that is thicker than the impression depth of the die. Alternatively, you can use thinner sheet with urethane (or a soft metal pusher) to create a hollow impression.
Removing your impression from the die
Occasionally, some dies can 'hold on' to your metal. This is more common when using a press compared to hammering. Ensure the dies are clean before use. If you wish, you can apply a very small amount of oil into the die before forming as this can help removal. Excess metal will create a flange around the design that will aid in removal after hammering or pressing. Carefully use a thin bladed knife under the excess metal to lift the impression out of the die.
Some additional information can be found here shot plate and impression die tips.
- Additional Information
Take a look at some of our other animals and insects designs.
If you need a pusher for your press, you can buy a flat or tapered pusher from our range of press tools. If you need a spacer for your press, you can buy one here. - Processing Times & Shipping
